Removal - License Plate Bracket
1. Using the ignition key remove the seat. Turn the key counterclockwise
2. Using an 8mm wrench, remove the (2) bolts that secure the fender to the frame. On the underside of the fender, user a 10mm socket to remove the (2) nuts securing the fender.
3. Using an 8mm socket remove the (2) bolts that secure the fender the frame. Support the fender it will drop down and only be supported by the (2) bolts located on the underside of the fender.

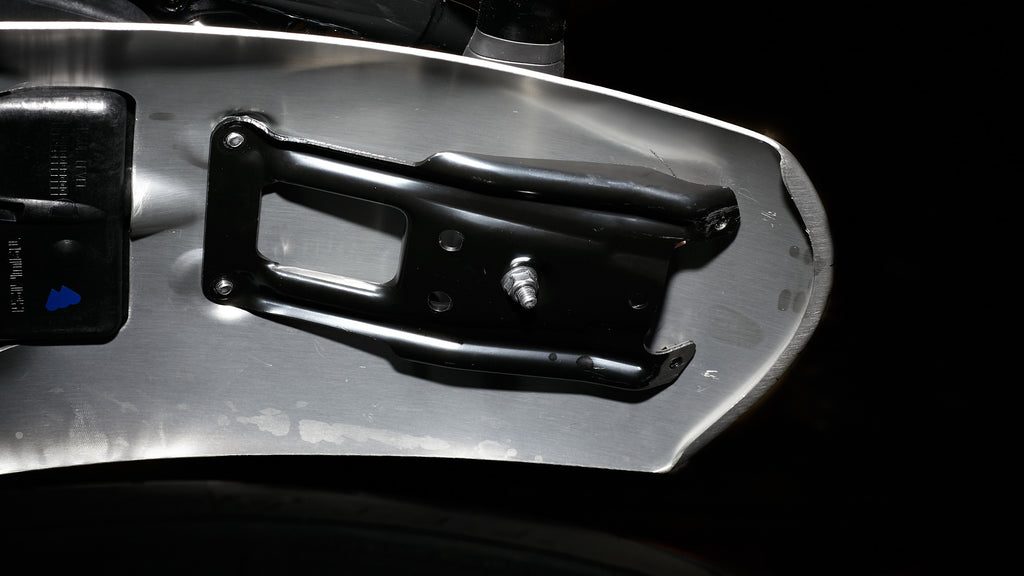

4. Using an 8mm socket and 10mm wrench remove the bolt that was exposed during step 3. Once the bolt is removed a spacer will be exposed. Save the spacer, bolt and locking nut for installation

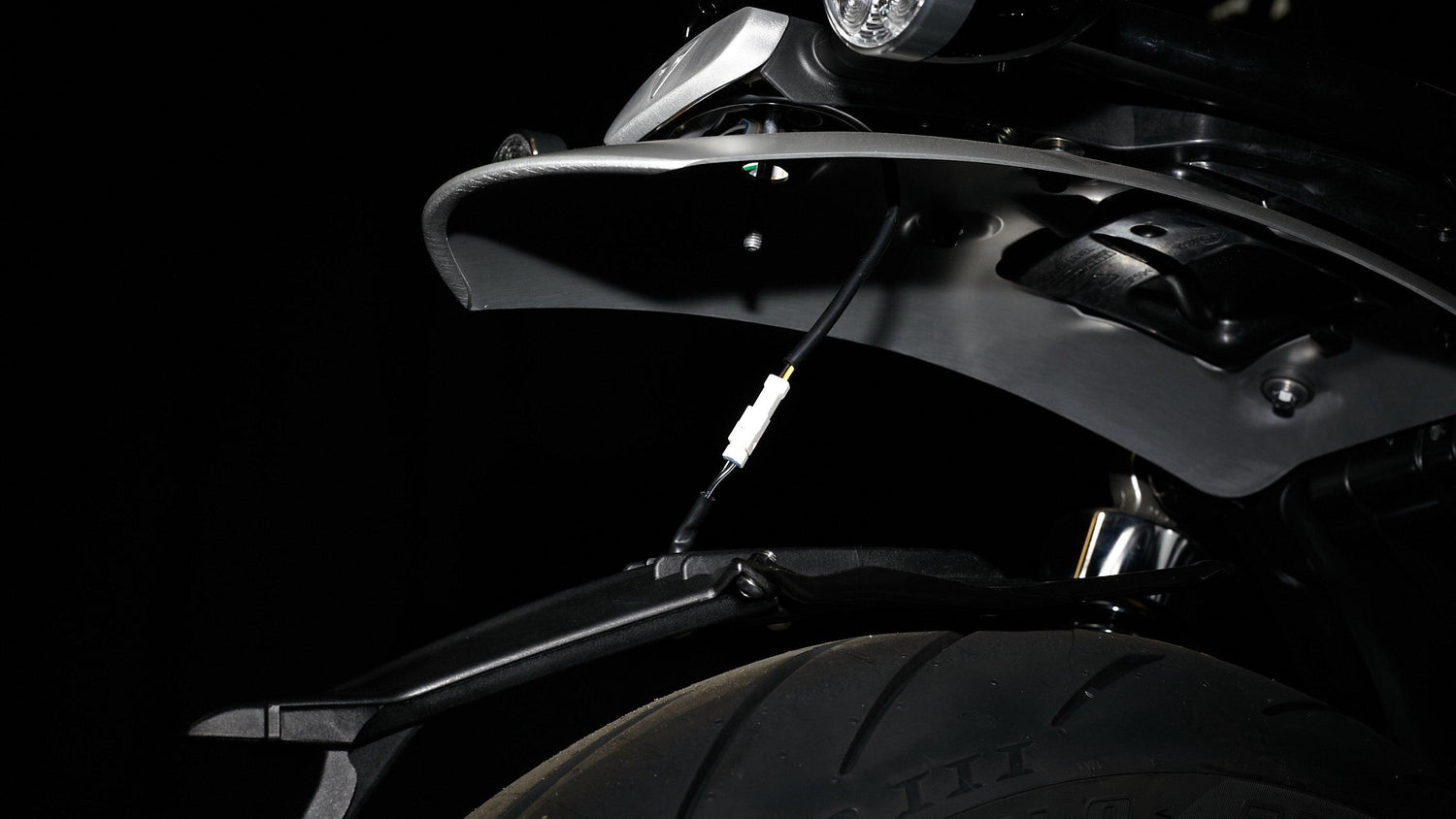

5. Disconnect the running light connector and remove the license plate assembly
6. Using a 3mm Allen remove the (5) bolts that secure the wiring cover to the license plate assembly.
7. Using a T15 Torx remove the (2) bolts that secure the license plate light and remove the license plate light. Save the license plate light and metal bracket for installation.
6. Using an 8mm and 10mm tighten the (1) bolt and (1) nut that secures the metal plate to the fender and taillight assembly. Make sure to install the sleeve that was removed in step 4.
7. Using an 8mm socket tighten the (2) bolts that secure the fender to the frame
8. Using an 8mm and 10mm secure the (2) bolts and (2) nuts that secure the fender to the frame.
