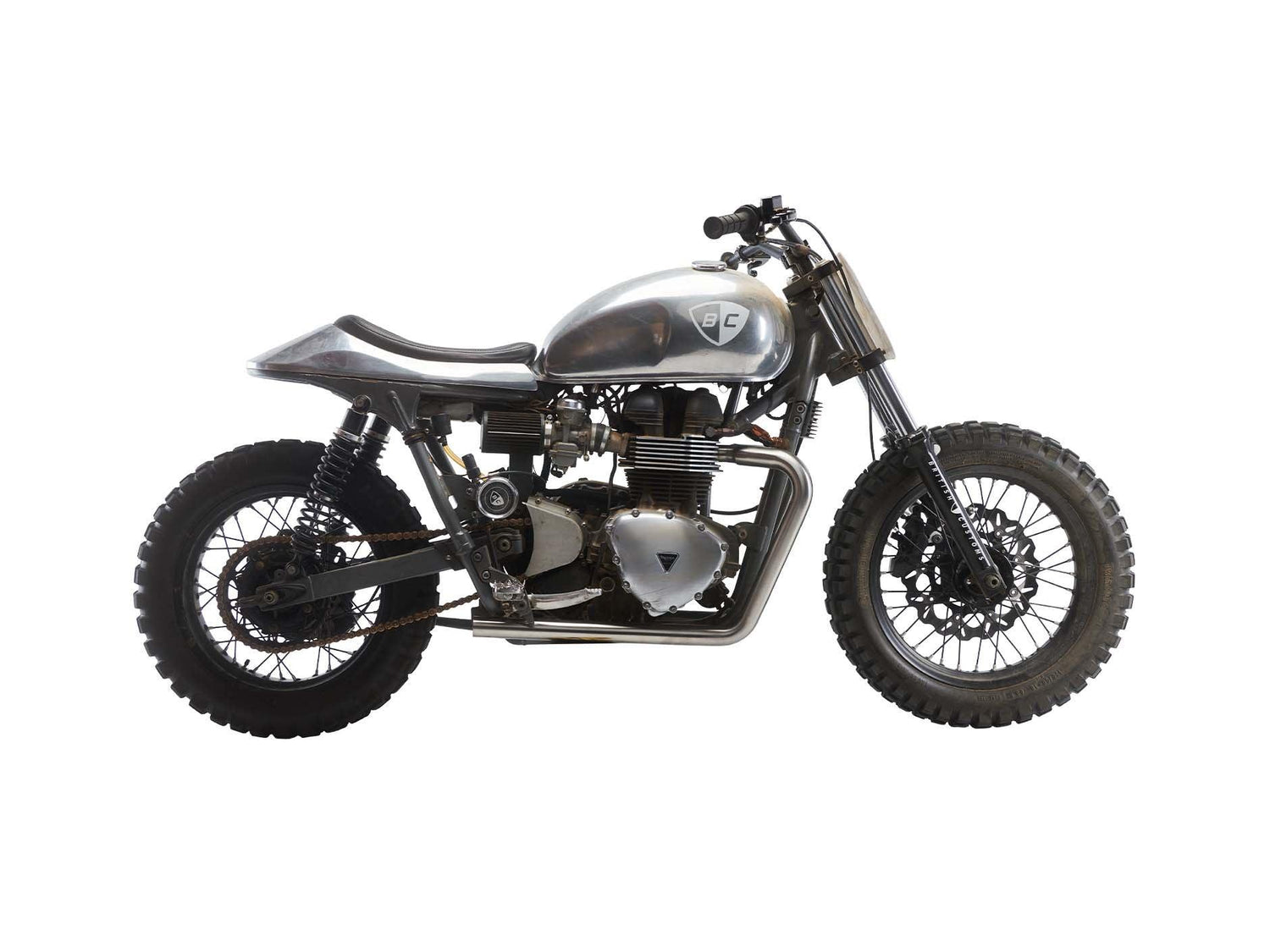

Bonneville EFI Custom: Tribute Dirt Bike

Bonneville EFI Custom: Tribute Dirt Bike - British Customs


Base Model: EFI Triumph Bonneville T100

The original idea for the first “Tribute” build was to create a replica of legendary Eddie Mulder’s Pikes Peak Bike on a modern fuel injected Triumph. We loved the old school painted gray frame and its carbon fiber details. But as many builds go, plans changed. Partway through working on the bike, we realized that if we wanted to stay consistent to Eddie Mulder’s carbon fiber gas tank and seat pan, being able to avoid re-doing the electronic fuel pump in the tank made more sense. So we ended up deciding to use a carbureted Bonneville as the base for the replica instead. (see the "Triumphant" Eddie Mulder build here)

Left with a fuel injected Bonneville that already looked like a decent tracker style bike, we let the build evolve in its own direction - making custom billet triple clamps, hand shaping and fabricating a retro styled aluminum tail section, specially creating a battery box that lays flat within the bike, and finishing off the build with our 19 Tracker Wheel Kit.

The “Tribute” has seen many adventures and has been put to many tests. It proved itself on the track with Thor Drake of See See Motorcycles and freestyle MX rider Drake McElroy, who both rode the bike at the Castle Rock TT Track. The bike made appearances at Wheels and Waves, drag racing against Harleys and BMWs with Jamie Robinson and at the Super Hooligan Series. Needless to say after all this applied use, the bike had more than displayed its abilities and we felt confident in its performance.

Smoking Seagulls Drake Mcelroy jumping the Tribute BonnevilleJamie Robinson vs El Solitario - Triumph vs BMWJamie Robinson vs El Solitario - Triumph vs BMW 2Jamie Robinson wheels and waves flat track racing the Tribute

So when State of Ethos came to us to build a “do everything” bike that could ride on the street and the dirt, it was a no-brainer for us to start with our “Tribute” as the first bike to kick off our design and test process for their build. We made some thoughtful changes to the bike for better dirt riding so SoE’s pro dirt rider Gared “Stankdog” Steinke could give us his first notes.To modify the flat tracker for dirt, we first switched out the 19 inch wheel for 17-18 inch lightweight aluminum Dubya wheels, taking off a substantial 25 lbs of weight to make the bike as light as possible.

For better positioning and leverage we traded out the Renthal Street Fighter bar for a Pro Taper EVO Dirt Track Handlebar that has a better bend for dirt application, and we positioned the bars higher up by adding 2 of our Riser Spacers to our Handlebar Clamps. For even more control in the dirt, we modified the gearing from 18t-42t to 18t-46t to enable better usage of the powerband in first and second gear. Check out the "PHOTOS" tab to see the parts installed.



  • Custom gel seat for custom seat pan


  • Round LED tail light integrated into custom seat pan



  • Pivot Foot pegs
  • Noleen J6 Custom Shocks sprung/valved for Scrambler models
  • Drive Systems 46t rear sprocket
  • DID 525VX Gold Chain
  • Ignition Relocation Kit
  • Hidden start switch integrated into ignition relocation bracket




  • Custom upper/lower triple trees with mounts for custom number plate
  • Frame painted race grey
  • Rear passenger hangers removed & frame portion rewelded for clean look
  • Tank paint stripped then ceramic coated for chrome look

Triumph Tribute Dirt BikeTriumph Tribute Dirt BikeTriumph Tribute Dirt BikeTriumph Tribute Dirt Bike Drag PipesTriumph Tribute Dirt Bike Left sideTriumph Tribute Dirt Bike Air Box removal KitTriumph Tribute Dirt Bike Air Box Removal Kit Close upTriumph Tribute Dirt Bike Oil in frameTriumph Tribute Dirt Bike Oil in frame lowerTriumph Tribute Dirt Bike Tail sectionTriumph Tribute Dirt Bike TailTriumph Tribute Dirt Bike Pivot PegzTriumph Tribute Dirt Bike Pivot PegzTriumph Tribute Dirt Bike Pro Taper Dirt Track HandlebarsTriumph Tribute Dirt Bike Number PlateTriumph Tribute Dirt Bike Triple TreeTriumph Tribute Dirt Bike RisersTriumph Tribute Dirt Bike Front EndTriumph Tribute Dirt Bike Beringer ClutchTriumph Tribute Dirt Bike Beringer Master CylinderTriumph Tribute Dirt Bike DrivelineTriumph Tribute Dirt Bike Front Wheel

Triumph Tribute Dirt Bike Fork BraceTriumph Tribute Dirt Bike Galfer RotorTriumph Tribute Dirt Bike TKC80 TiresTriumph Tribute Dirt Bike Noleen Rear ShocksTriumph Tribute Dirt Bike Rear Rotor

Stankdog riding the British Customs Tribute Dirt Bike

    Also featured in commercials/music videos:
