Galfer Front Floating Wave Rotor for Triumph & Ducati Scrambler

• Full floating blades: the disc moves with heat instead of resisting it, so pad contact stays square across the whole face and stopping force stays where you put it.
• Runs cooler under load: air passes over every point of the pad surface, pulling heat out of the system before it reaches the lever.
• Virgin high carbon 420 stainless: Galfer's proprietary mix, laser cut and never stamped, double disc parallel ground for true parallel flatness.
• Heat treated per application: each rotor is treated for the bike it goes on, not to one generic spec.
• Sharper lever feel and modulation: more brake torque and finer control at the lever, predictable and consistent in aggressive conditions.
• Direct stock replacement: no bracket, no caliper change. Full instructions included and technical help if you want it.
• KBA and TUV approved: tested and certified to European brake standards.

• Material: virgin high carbon 420 stainless steel, Galfer proprietary mix
• Construction: laser cut, never stamped. Double disc parallel ground for parallel flatness. Heat treated to each specific application

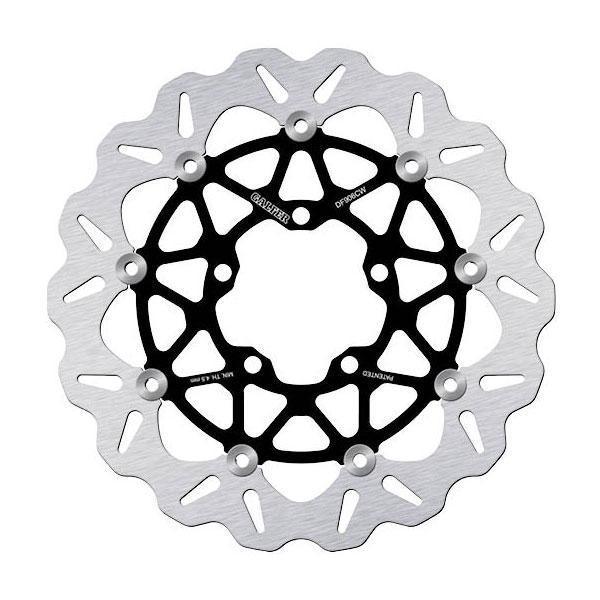

• Design: full floating wave profile, front
• Approvals: KBA and TUV approved

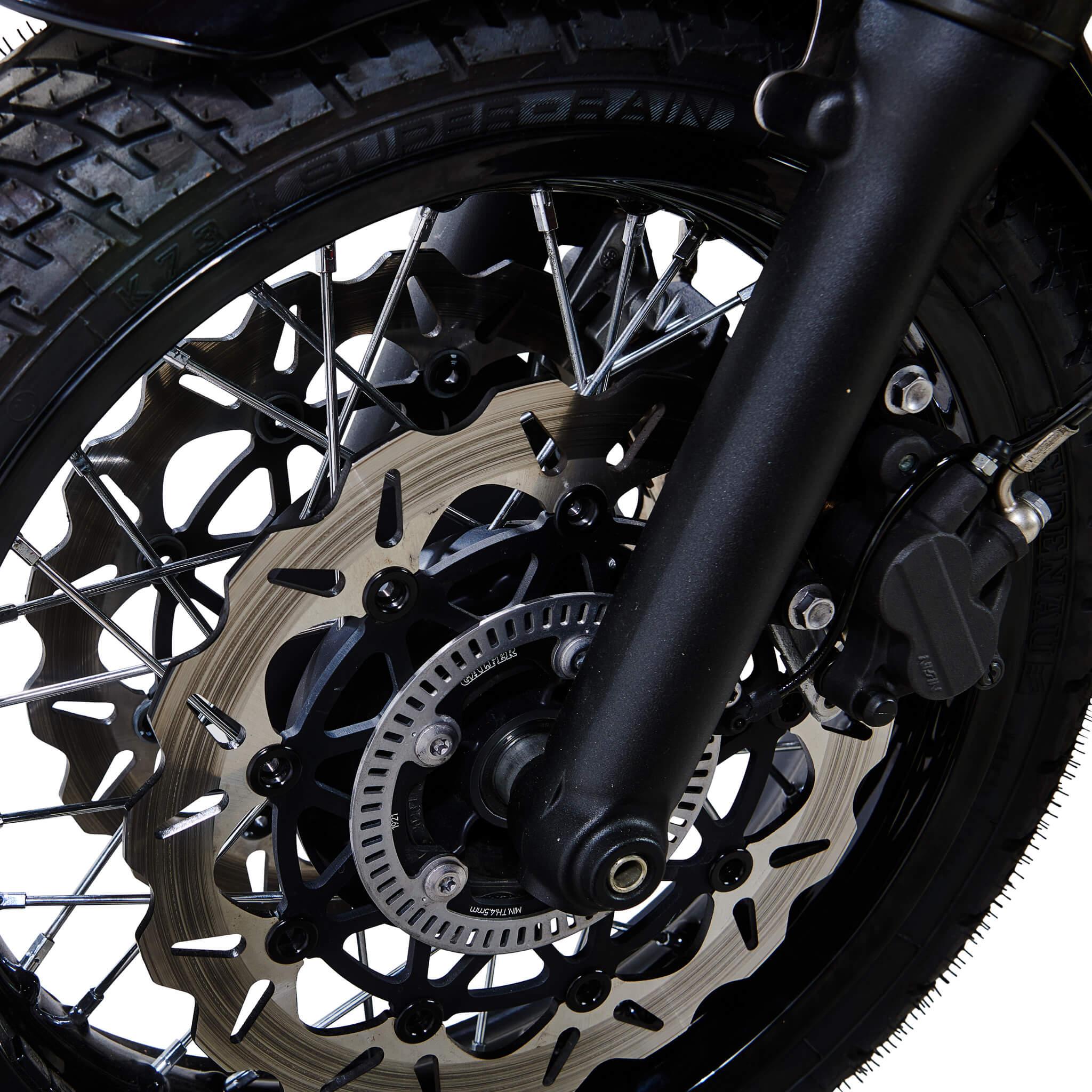

• Sold: individually. Bikes with dual front discs need two
• Diameter: 310mm for 2016 and newer Bonneville, Bobber, Thruxton, Street, and Speedmaster 1200. 320mm for the Scrambler 1200 and the Bonneville SE. Other applications vary
• Origin: made in Galfer's factory in Spain
• Fitment: Triumph Bonneville, Thruxton, Scrambler, Street, Speed Twin, Bobber, Speedmaster, America, and Scrambler 1200, plus the Ducati Scrambler. Select your model above for the exact rotor
• Warranty: 6 months from the date of purchase, not the date of use. Galfer requires Galfer brake pads to be run on the rotor to keep the warranty in force. Out of warranty, a rotor can be sent in for inspection at the customer's or the shop's cost. Galfer customer service: customerservice@galferusa.com or (800) 685-6633

• (1) Galfer front floating wave rotor
• (1) Installation instruction sheet

Difficulty: Moderate · Time: about 45 minutes per rotor · Tools: basic hand tools, torque wrench

1. Support the bike securely and let the brakes cool completely.
2. Remove the front wheel following your service manual.
3. Unbolt the stock rotor from the wheel and lift it off.
4. Clean the mounting face on the wheel so the new rotor seats flat.
5. Fit the Galfer rotor and hand start every bolt before tightening any of them.
6. Torque the rotor bolts to your service manual specification in a cross pattern.
7. Refit the wheel, torque the axle to spec, and pump the lever until it firms up.
8. Bed the pads in with a series of moderate stops before riding hard.

• Check your model: select your make, model, and year above. Fitment differs by platform and year across the Bonneville, Thruxton, Scrambler, Street, Speed Twin, and Ducati Scrambler ranges.
• Rotors are sold individually. If your bike has dual front discs, order two.
• The Ducati Scrambler rotor is not a stock item. It needs 3 to 5 days lead time before it ships.
• Run Galfer pads to keep the warranty. Galfer's 6 month rotor warranty holds only while Galfer pads are on the rotor, and the clock starts the day you buy it, not the day you fit it. Fitting new pads with a new rotor is good practice anyway, since a fresh rotor bedding into worn pads gives up the bite you paid for.
• You will need a torque wrench. Rotor bolts are a safety critical fastener and go to a specification, not to feel.
