How to Install Rear Turn Signals Bonneville Bobber

Step by step guide on how to install the British Customs Rear Turn Signals on a Triumph Bobber and Bobber Black.

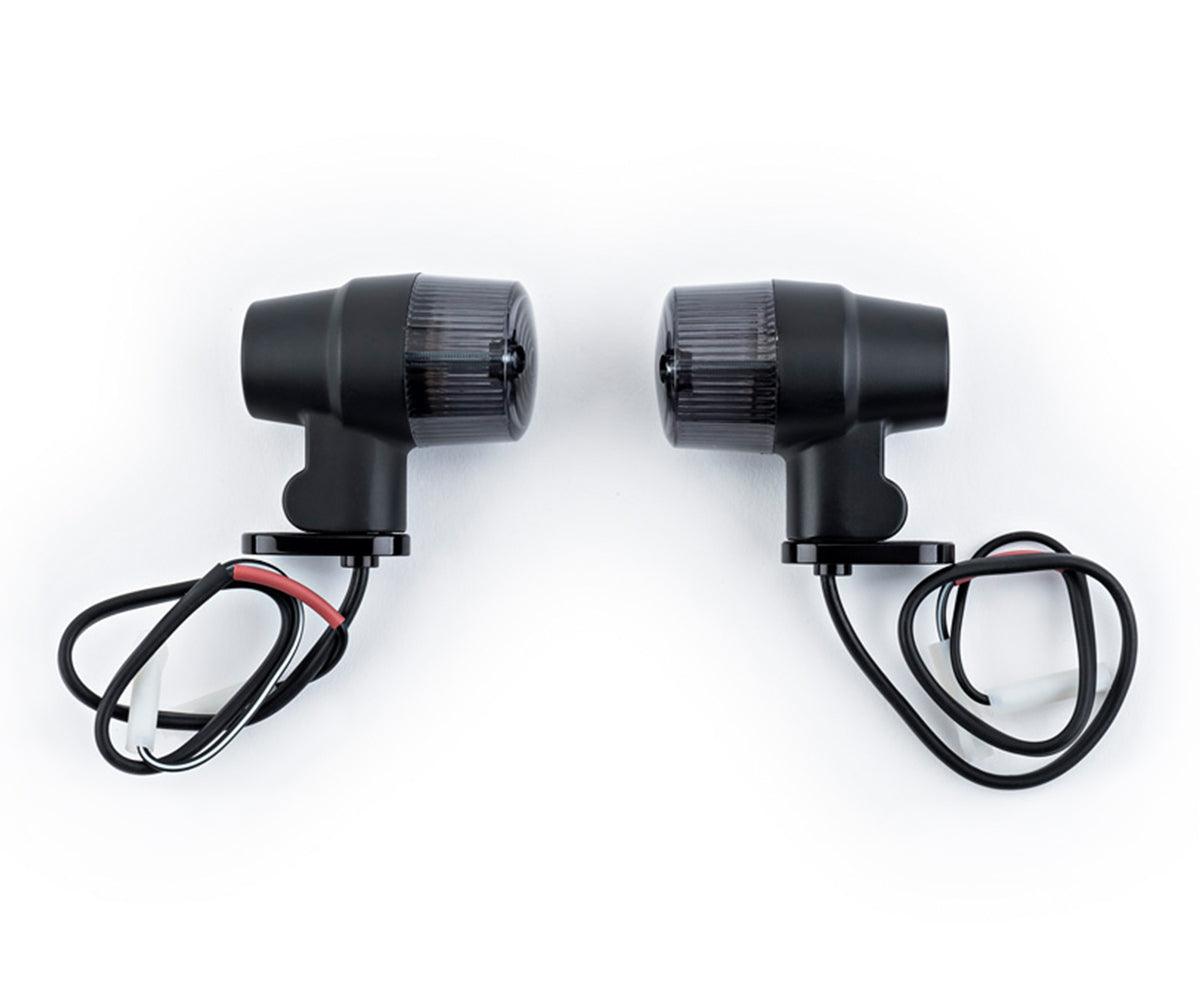

Purchase this kit here: Rear Turn Signal Kit Bobber

Fitment

  • Triumph Bonneville Bobber (2017+)
  • Triumph Bonneville Bobber Black (2017+)

Last Updated
11-27-2019

REMOVAL

1 - Remove the battery (see How to Remove the Battery)

2 - Remove the (1) fastener & shouldered washer located on the inner part of the frame.

Triumph Bonneville Bobber Rear Turn Signal install British Customs

3 - Install the BC Frame Mount Turn Signal with the existing hardware (Removed in Step 2). The Bolt goes through BC Shock Mount Bracket and the Shouldered Washer goes between the Frame Mount BC Shock Mount Bracket.

Triumph Bonneville Bobber Rear Turn Signal install British Customs

4 - Route the left BC Frame Mount Turn Signal connector along the frame and into the battery compartment and secure with the adhesive clip and zip tie.

Triumph Bonneville Bobber Rear Turn Signal install British Customs

5 - Route the Right BC Frame Mount Turn Signal behind the shock and into the battery compartment and secure with adhesive clip and zip tie. Note: Use a wire to guide the cable into the battery compartment.

Triumph Bonneville Bobber Rear Turn Signal install British Customs

6 - Connect the Left & Right Turn Signal Connectors to the BC Sub-Harness.
The right side lead is marked with red heat Shrink.

Triumph Bonneville Bobber Rear Turn Signal install British Customs

7 - Install the battery
