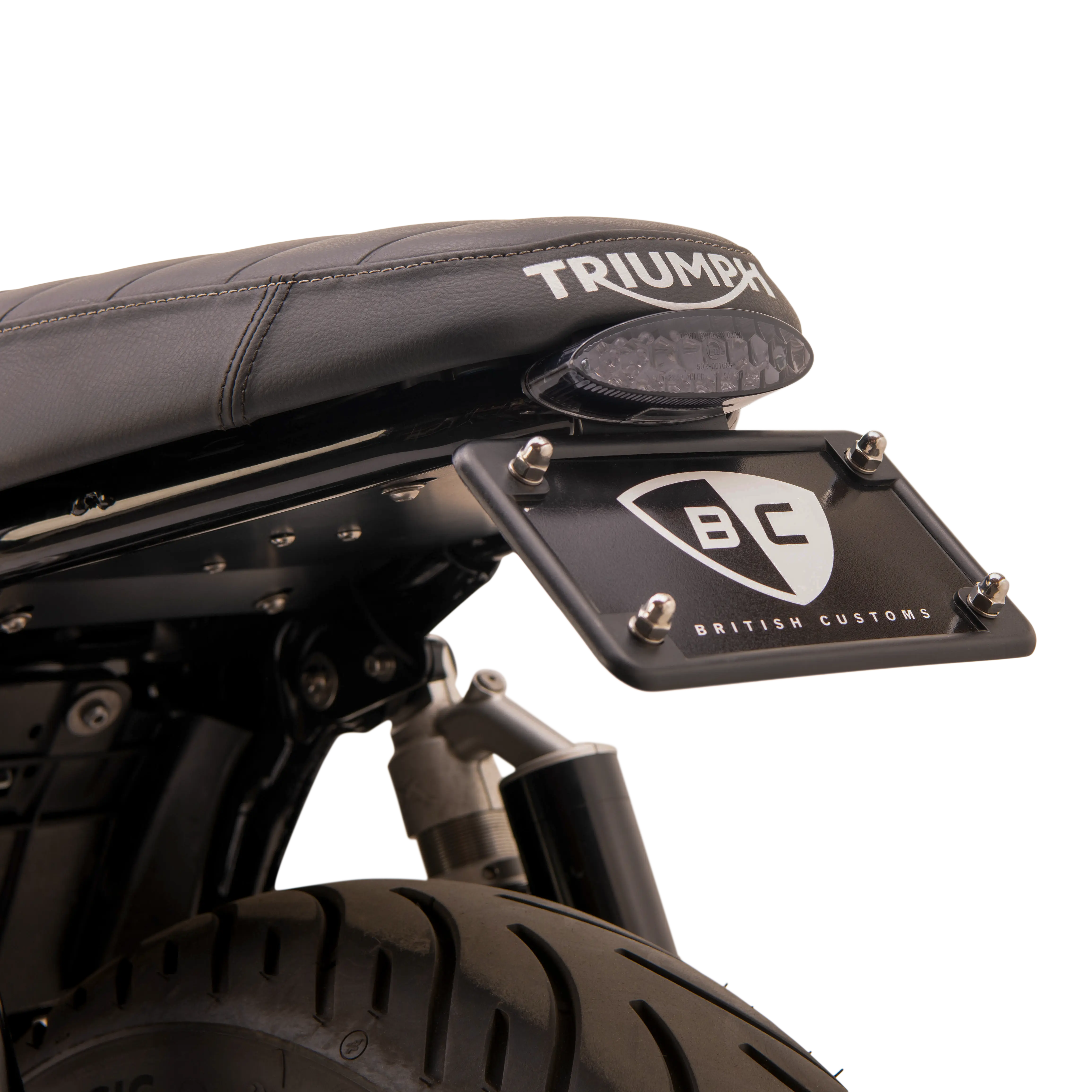

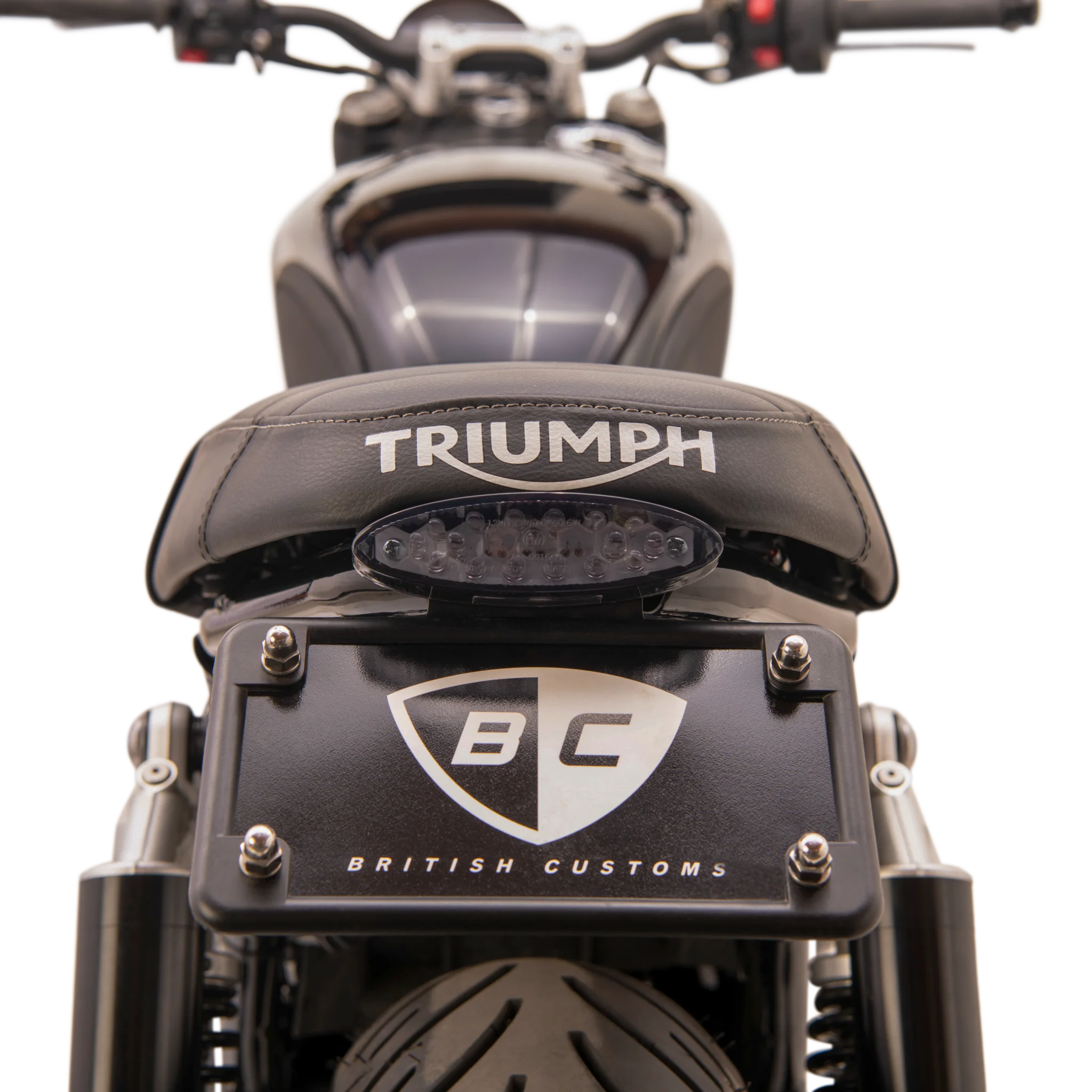

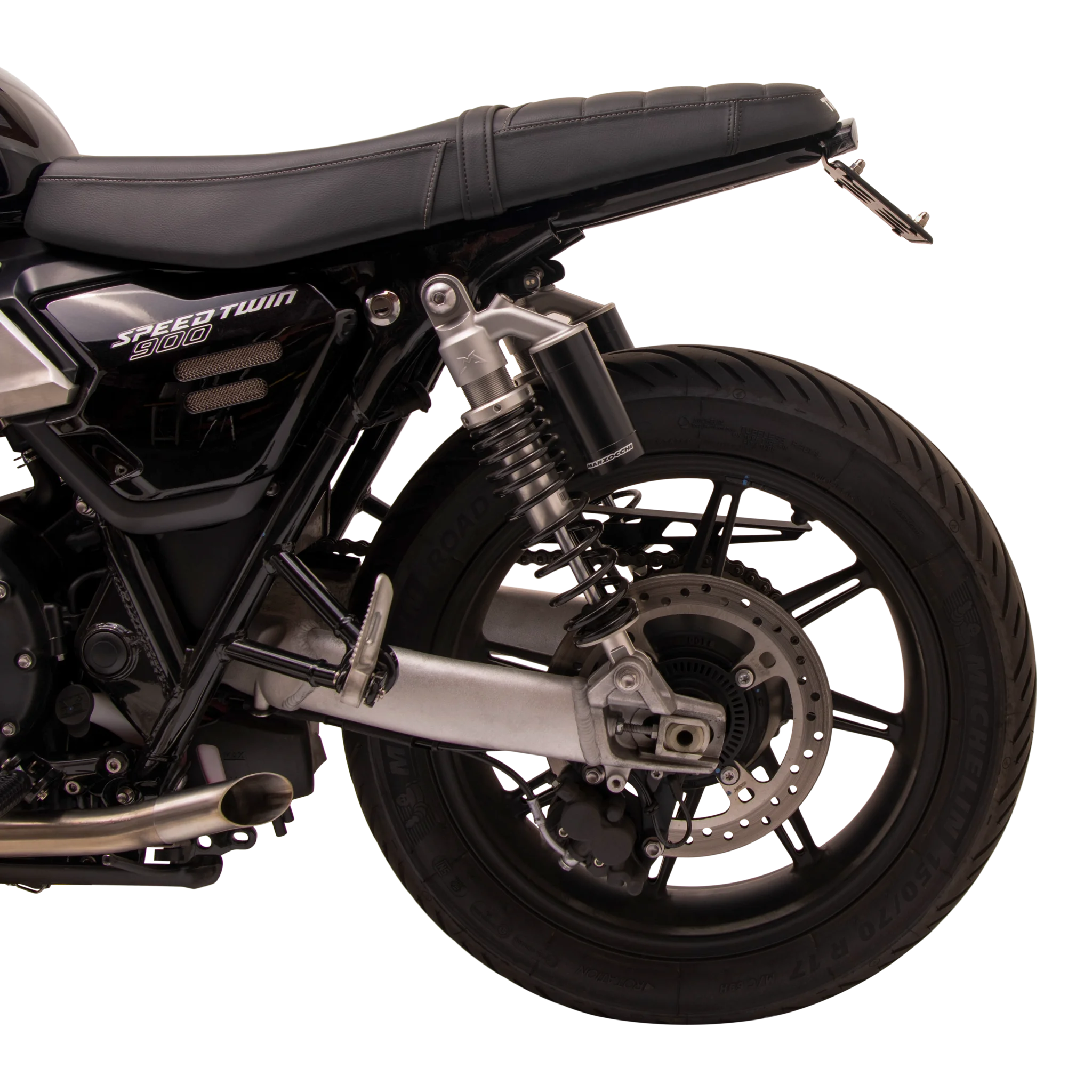

Plug & Play Fender Eliminator Kit for Triumph Speed Twin 900

• Two piece underplate and tail light mounting bracket: laser cut 304 stainless steel, purpose built for the 2025 subframe geometry, not adapted from an earlier fitment.
• Seat release bracket, 2025 platform specific: keeps the seat release mechanism functional and secure after the fender is removed.
• LED Cateye tail light with integrated plate light: handles brake, running, and license plate lighting from one unit. Red or Smoked lens.
• Plug and play wiring harness with integrated diode: OEM matched connectors plug straight into the factory sub harness connection point and prevent an engine light code. No cutting or splicing.
• Removable license plate holder: mounts to the tail light bracket and comes off cleanly for a side mount or shock mount plate setup.
• Complete system: underplate, tail light mounting bracket, seat release bracket, harness, tail light, and stainless hardware, all included.

• Material: 304 stainless steel (.065 wall), laser cut
• Finish: powder coated semi gloss black
• Component architecture: separate underplate and tail light mounting bracket (two piece design)
• Tail light: LED Cateye, dual function (brake and running) with integrated LED license plate illumination
• Tail light lens options: Red or Smoked
• Harness: plug and play with OEM matched connectors and integrated diode
• Fitment: Triumph Speed Twin 900, 2025 and newer. Not interchangeable with the 2023 to 2024 Speed Twin 900 or Street Twin platform, covered under BC410 028.
• Warranty and returns: 1 year limited warranty covering manufacturing defects and workmanship. Excludes normal wear, damage from incorrect installation, or use with incompatible components.

• (1) laser cut stainless steel underplate, powder coated semi gloss black
• (1) tail light mounting bracket, powder coated semi gloss black
• (1) stainless steel seat release bracket, 2025 and newer specific
• (1) plug and play wiring harness with OEM matched connectors and integrated diode
• (1) LED Cateye tail light (Red or Smoked lens) with built in license plate illumination, 3 pin connector
• (1) removable license plate holder
• Stainless steel mounting hardware

Difficulty: Beginner · Time: 1.5 to 2 hrs · Tools: common hand tools (socket set, screwdrivers, trim removal tool)

1. Remove the seat and stock rear fender assembly.
2. Install the seat release bracket to keep the seat mechanism functional.
3. Assemble the Cateye tail light and license plate holder onto the tail light mounting bracket.
4. Mount the underplate, then mount the tail light bracket to it.
5. Connect the plug and play harness to the factory sub harness connection point.
6. Relocate turn signals using the Plug and Play Turn Signal Kit for this platform, then verify plate clearance.

• Check your model: fits the Triumph Speed Twin 900, 2025 and newer, only. Does not fit the 2023 to 2024 Speed Twin 900 or the Street Twin platform. That fitment is covered under BC410 028.
• Turn signal relocation required: this kit removes the stock fender mounted signals. Pair with the Plug and Play Turn Signal Kit built for this harness.
• Third party turn signals: if you are not using the BC kit, confirm your signals are compatible with Triumph's CANBUS system before installing.
• Check plate clearance: verify clearance after install, especially with aftermarket or oversized rear tires.
• Pick your lens: LED Cateye tail light comes in Red or Smoked.
