- Description
The handlebar end mirror m.view Cafe is very small and compact. It can be mounted above or below the handlebars. The mirror is suitable for the right and left side. It mounts directly onto the handlebar end.
The mirror is the same for left and right side. Sold individually. For a complete mirror kit see,
Motogadget Cafe Mirror Kit - 1 Inch
Motogadget Cafe Mirror Kit - 7/8 Inch
Dimensions:
Diameter of mirror body: 96 mm
Thickness of the mirror body without ball-joint: 4.2 mm
Length of the stem: 110 mm
Inner diameter of the clamp: for 7/8" and 1" handlebar
Clamping width: 12 mm
m.view METALMIRROR Explained

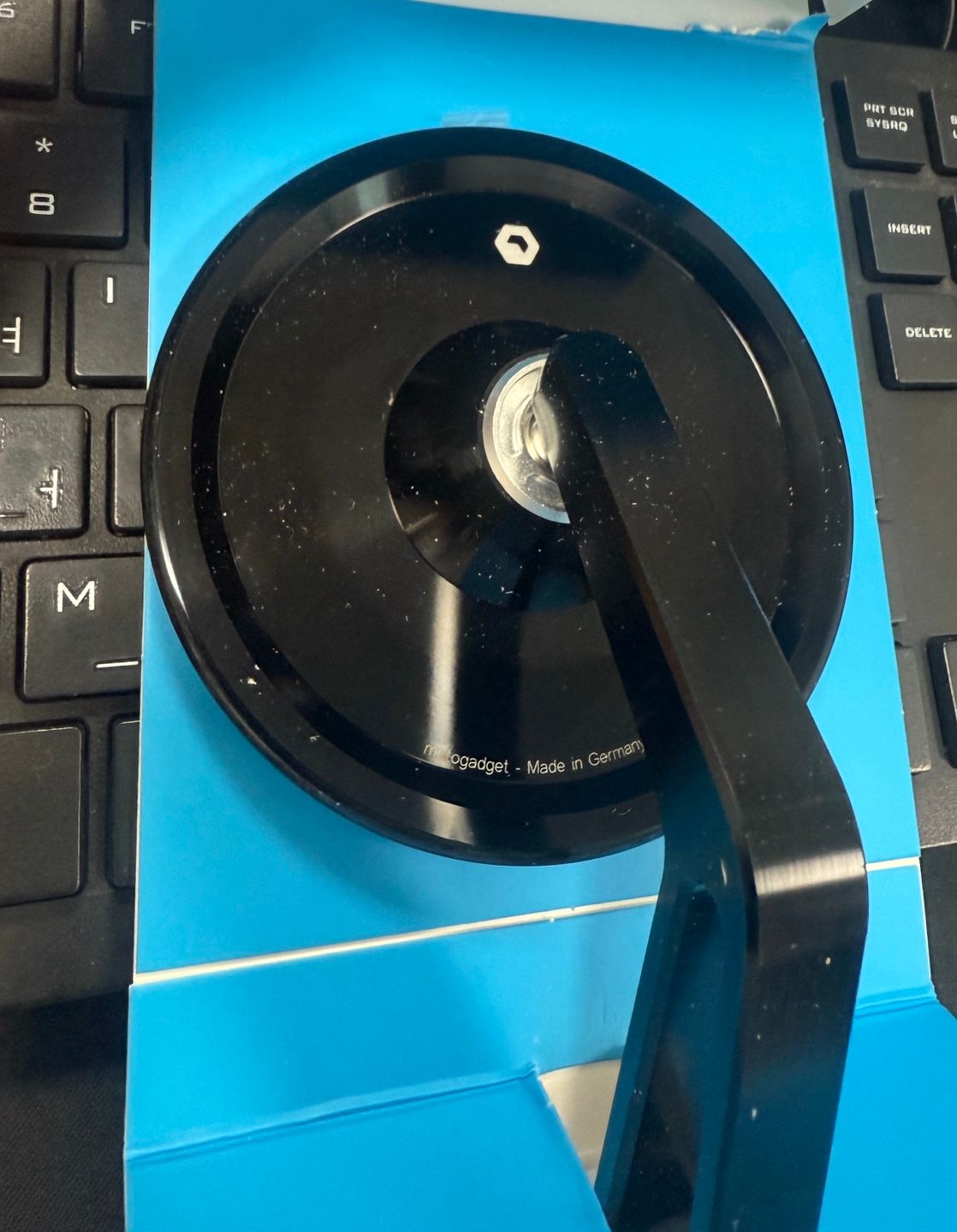

The special feature of this motorcycle mirror is the patented mirror surface, which is worked directly into the metal of the body. The Aluminum itself is the mirror surface! Due to the design, the mirror body itself becomes very thin and light.
The convex mirror surface is produced in flycutting by means of diamond tools on ultra-precision machines. It is then made resistant to oxidation, corrosion and scratches by a complex plasma coating process in a vacuum.
The mirror body, mirror arm and the clamping for the handlebar end are milled on CNC machines from solid aluminium and anodized to a high quality. All screws are made of stainless steel. The precise ball joint allows a comfortable and very stable adjustment of the mirror.
Features:
- Compact design
- Mounts on bar end
- Glassless "METALMIRROR" design
- Precise and stable adjustment
- Superior visibility
