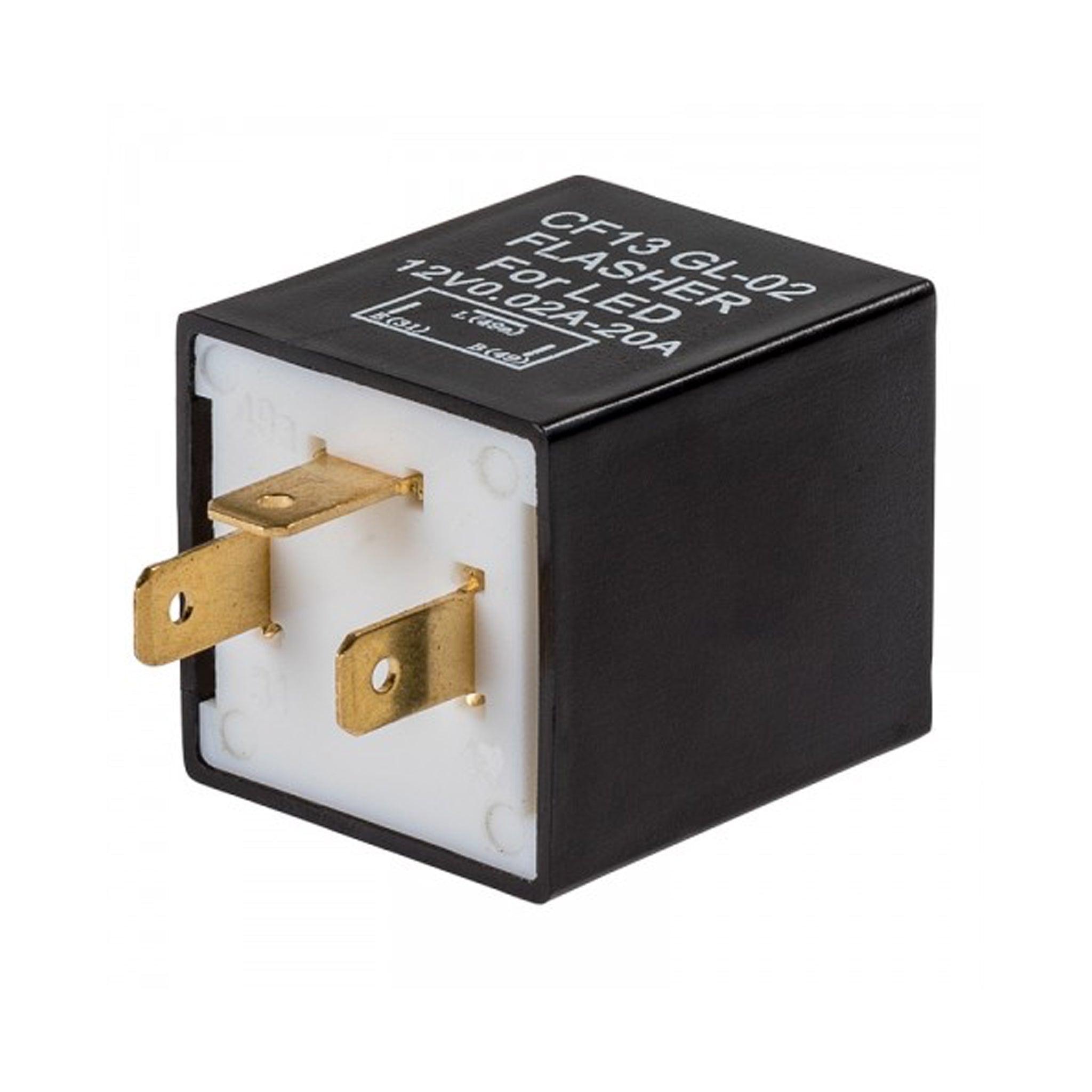

LED Turn Signal Relay / 3 Pin

LED Turn Signal Relay

Electronic LED Flasher Relays eliminates the need for load resistors & turn signals will flash at normal rate with/without LED bulbs.

Features:

• Eliminates the need for load resistors, resulting in bulb flashing at a normal rate
• Plug-n-play
• 2 pin or 3 pin option

Technical Characteristics (2 pin + 3 pin):

• Nominal Voltage: 12V

• Operating Voltage: 11-15V

• Pull-in Voltage: ≤11V@Tp

• Test Voltage: 13V±0.2V

• Test Temperature: +20°C±2°C

• Switch Power: 0.02A - 12A

• Flashing Frequency: 90 TIMES/min±10%

• Operating Temperature: -40+80 °C (-40+176 °F)

• Storage Temperature: +100°C/2h

• Life Time: 200h/Wn CONT.
