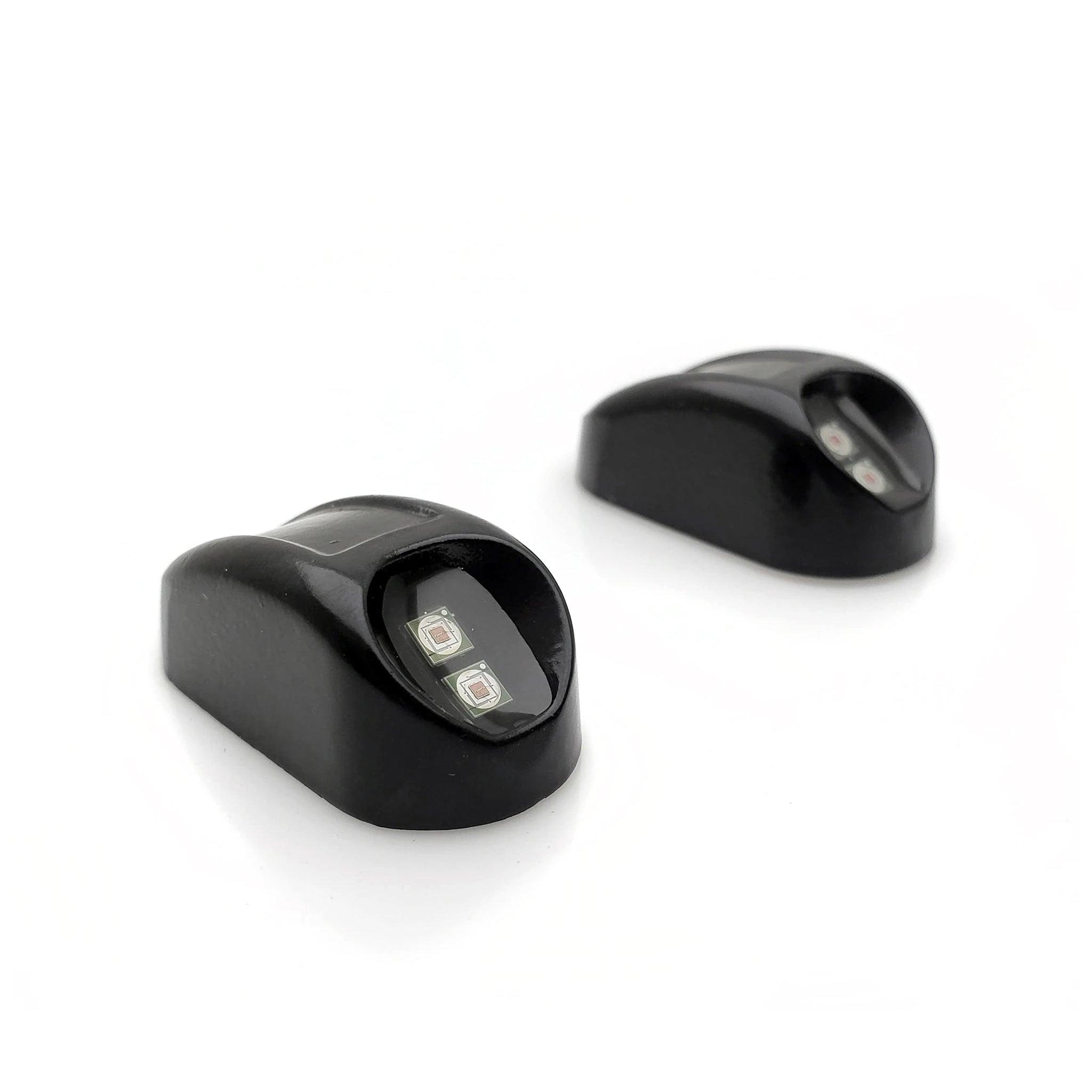

Analog Universal Signal Pods

Analog Universal Signal Pods

These signals are specifically designed for custom and sport applications where riders want a super low profile look but don't want to sacrifice functionality. Each pod features two high-power 3 watt LEDs packed into a durable cast aluminum housing coated in a satin black powder coat finish. Don't let their small size fool you. These pods are super bright and feature an angled lens design that makes the bright amber LEDs completely visible from the side of the vehicle in addition to the front.

If extra spacing is required to clear obstructions such as license plates or body panels, the DenaliSpacer Kitcan be used to add 1 inch of offset from the mounting surface. The spacers kits clever design allows for both M8 and M6 mounting options and contains the necessary components to install two Micro Turn signals.

(sold separately; choose on option dropdown)

*_Compatibility Note: *_This listing is just for the turn signals, if you're looking to purchase a plug & play kit which works specifically with our tail lights with no other parts needed, please view here

Specifications:

• Pod Size: 1.45" (36.8mm) x 0.73" (18.5mm) x 0.55" (14mm)
• LED: Two per signal, Flip Chip C3535 3W
• LED Color: Amber
• Power Draw: 6 Watts per signal (12W Pair)
• Input Voltage: 12V DC
• IP67 Waterproof

Denali Flush Mount Micro LED Turn Signals content:

• (x2) Flush Mount Signal Pods
• (x2) M5x20 Set Screw, DIN 913
• (x2) M5 Nylock Nut, DIN 985
• (x4) Posi-Lock Connectors

Denali Spacer Kit content:

• (x2) 1" Spacer Blocks
• (x2) M8 Mounting Hardware Kit
• (x2) M6 Mounting Hardware Kit
• (x1) Instruction Manual

Compliance Note: Does not comply with FMVSS108 or CMVSS108.

Load Note: Turn load resistors are necessary to prevent hyper flashing of the signals when swapping from incandescent to LED turns signals. Use DNL.WHS.12700 when replacing original 10-watt signals, and DNL.WHS.12800 when replacing original 21-watt signals.
