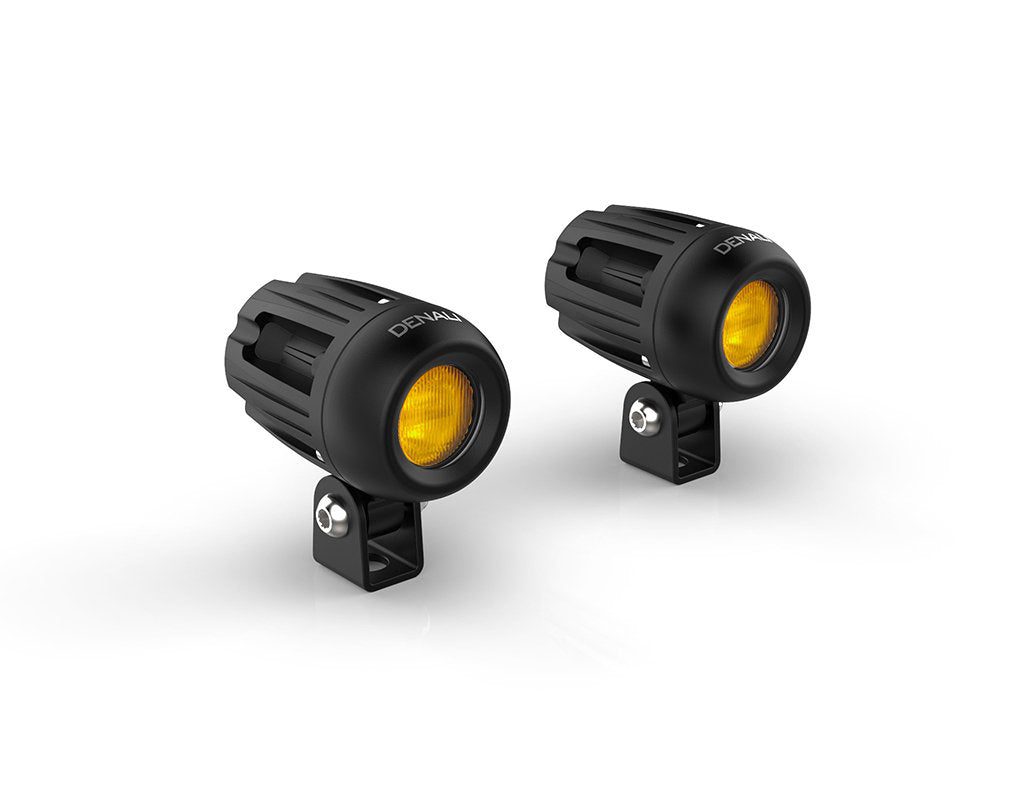

Denali DM 2.0 TriOptic LED Light Kit with DataDim Technology – Amber (Pair)

The Denali DM 2.0 TriOptic LED Light Kit with DataDim Technology - Amber (Pair) is engineered to deliver a powerful beam pattern ideal for both nighttime visibility and daytime conspicuity. Despite their compact size, the spot lenses project a focused beam up to 525 feet, while the included E-Mark certified flood lenses provide a wide 165-foot spread.

DENALI’s revolutionary DataDim™ Technology allows for an instant upgrade to dual-intensity lighting via the optional plug-n-play controller (sold separately), syncing the lights with your vehicle's high-beam switch. Designed for rugged performance, the kit includes low-profile hinge mounts, corrosion-proof bezels, and weather-sealed switches for ultimate durability.

Key Features

• LEDs: (2x) 10 Watt Cree XPL HI per lamp
• Power Draw: 1.6 Amps (total)
• Beam Distance (Spot): 525 feet
• Beam Width (Spot): 75 feet
• Raw Lumens: 2190
• DataDim™ Compatible: Yes
• Intensity: Single Intensity Harness (dual-intensity with optional controller)
• Operating Voltage: 12 VDC
• Color: Amber (Pair)
• Durability: IP67 Waterproof & Submersible, Impact PC™ Bezel
• Certifications: E-Mark Approved Flood Lenses

Specifications

• LEDs: (2x) 10 Watt Cree XPL HI
• Power Draw: 1.6 Amps (total)
• Beam Distance (Spot): 525 Feet
• Beam Width (Spot): 75 Feet
• Raw Lumens: 2190
• Operating Voltage: 12 VDC
• Pod Size: 2.2” Diameter x 2.4” Deep (each)
• Pod Weight: 0.6 lbs (each)
• Waterproof Rating: IP67 – Fully waterproof and submersible
• Certifications: E-Mark Approved Flood Lenses

What's in the Box

• (2) LED Light Pods - Amber (Pair)
• (2) Spot Lenses (pre-installed)
• (2) E-Mark Approved Elliptical Flood Lenses
• (1) HotSwap™ Single Intensity Wiring Harness
• (1) DrySeal™ Waterproof Illuminated Switch
• (1) 7/8in Handlebar Switch Mount
• (1) 1in Handlebar Switch Mount
• (2) Hinge Mounts with M8 Stainless Steel Hardware
• (4) Zip Ties & (1) Adhesive Mounting Square

Fitment Note

This is a universal product and is not model specific. It can be installed on most motorcycles and vehicles using the included hardware and mounts.

Instructions & Documents

• Download Installation Manual (PDF)

• DENALI 2.0 DR1 and DM Headlights - Installation and Review
