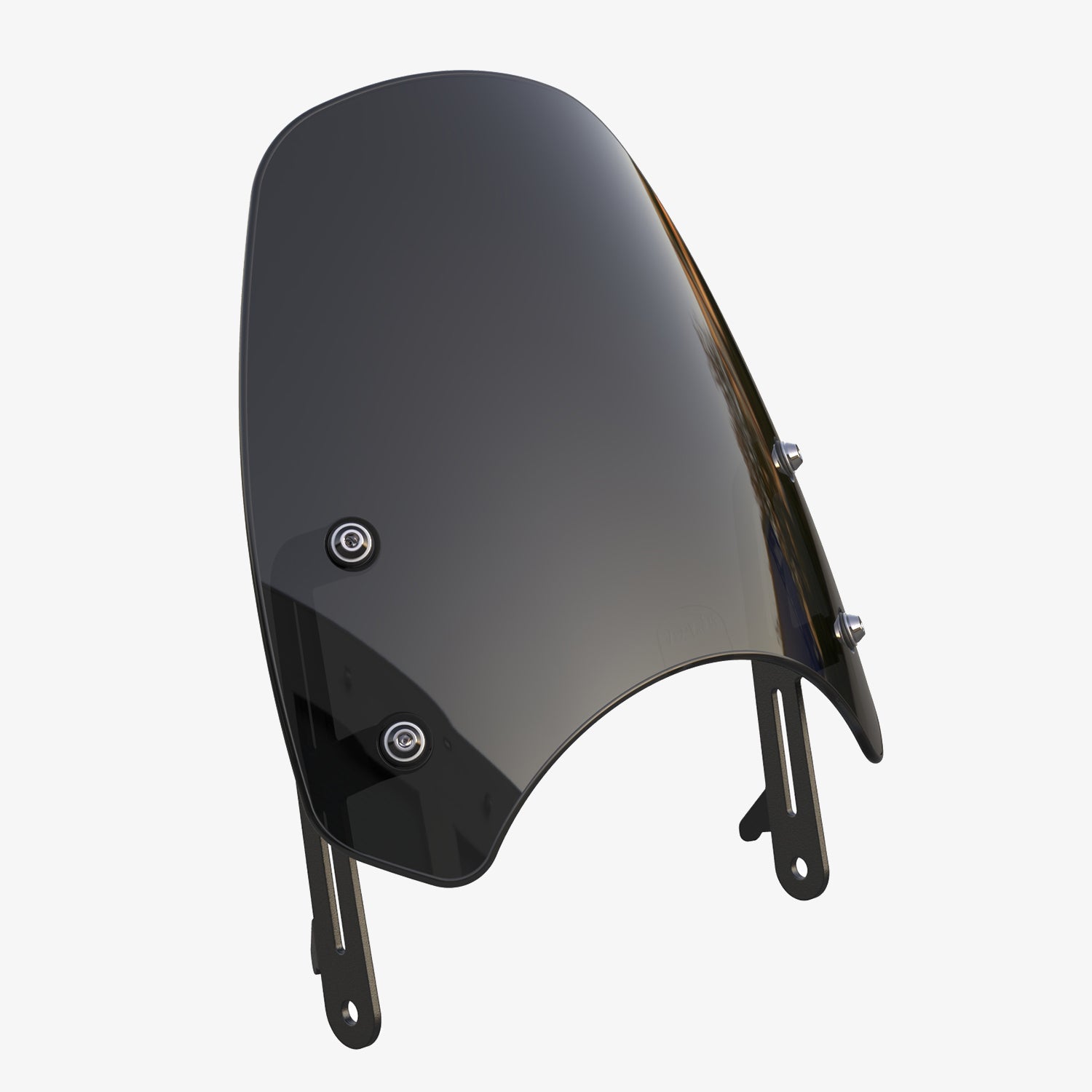

Dart Series 3 Flyscreen for Triumph Thruxton 900

SKU: TT51D
Sale price$129.95
Select Your Style: Dark Tint

Select Your Style


Need Help?

Speak to one of our experts (Monday - Friday 9 am to 4 pm PST)

Spend an additional $270 to qualify for FREE SHIPPING

Revamp your Triumph Thruxton 900 with the Dart Series 3 Flyscreen, a meticulously designed accessory that combines style and function for a top-notch riding experience. This flyscreen not only adds a touch of elegance to your bike but also offers outstanding wind protection, making it a must-have for Thruxton 900 enthusiasts.

The Dart Series 3 Flyscreen's sleek and aerodynamic design is engineered to reduce wind turbulence, ensuring a smoother and more comfortable ride, especially at higher speeds. Crafted from premium materials, it's built to withstand the rigors of the road, promising longevity and durability. With its hassle-free installation and included hardware, you can effortlessly boost your bike's aesthetics and performance. Transform your Thruxton 900 into a head-turning masterpiece with the Dart Series 3 Flyscreen, where style meets functionality for the ultimate riding experience.

Series 3 Flyscreen features:

  • Enhanced Wind Protection: The Dart Series 3 Flyscreen provides superior wind protection, reducing turbulence and ensuring a more comfortable ride, especially at higher speeds.

  • Stylish Upgrade: Complement the classic design of your Triumph Thruxton 900 with this flyscreen, adding a touch of elegance and style to your bike.

  • Built to Last: Crafted from high-quality materials, this flyscreen is designed to withstand the rigors of the road, ensuring long-lasting durability and performance.

  • Easy Installation: With all the necessary hardware included, installing the Dart Series 3 Flyscreen is a hassle-free process, allowing you to quickly enhance both the look and functionality of your motorcycle.

Specification:

  • Injection-molded screen in 4mm thick high-impact automotive-grade polycarbonate

  • Dimensions: 275mm (10.75") wide x 275mm (10.75") tall. Distance from top of the headlight cutout to top of the screen: 240mm (9.5")

  • Dartec II anti-scratch hard-coating for extended life

  • Mounting brackets in laser-cut aluminum, CNC-folded and powder-coated in black textured finish

  • Custom EPDM grommets to absorb vibration

  • Custom stainless steel screen mounting bolts with grommet ring and positive stop

  • Microfiber cleaning cloth

Fits Thruxton 865cc air-cooled bikes.

Package Includes:

  • 1 X High Impact Polycarbonate Screen
  • 4 X EPDM Rubber Grommets
  • 1 X Left Hand Mounting Bracket
  • 1 X Right Hand Mounting Bracket
  • 4 X Stainless Hex Head Machine Screws
  • 4 X Washers

Fitting Instructions:

  1. Fit the grommets to the screen - this is best achieved from the back of the screen blade.
  2. Using a 13mm socket, remove the bolt holding the headlamp to the right-hand headlamp bracket.
  3. Fit the right-hand screen mounting bracket on the headlamp bracket and refit the bolt; make sure the washer is on the outside of the screen bracket, so the screen bracket bears directly onto the headlamp mounting bracket. Ensure that the triangular step at the back of the screen mounting bracket is resting fully on the headlamp bracket before tightening. Be especially careful not to cross-thread these bolts - in our experience, the generous layer of chrome that Triumph applies can mean that the thread clearance is very small, and the bolt can be quite tight.
  4. Repeat the operation for the left-hand side. If one side is fully tightened before the other is attempted then the headlamp should not need readjusting.
  5. With both brackets fixed, hold the screen blade in position and loosely fit the bottom two hexagon head machine screws with their washers, ensuring that they engage in the captive nuts on the brackets. Do not tighten these yet.
  6. Fit the top two machine screws. Note that the screen is held by a small amount of tension and the brackets will have to be forced slightly to accommodate this. Once everything is in position, gradually tighten all the screws evenly until they are seated on the brackets.
  7. Double-check that everything is sufficiently tight and if so, fitting is now complete!

MAINTENANCE: No special maintenance is required. Do not use solvents to clean - just warm soapy water. Many proprietary glass cleaners are suitable for polycarbonate - check the label before trying.

IMPORTANT NOTICE: Whilst the screen provides a good level of impact protection, it is not warranted unbreakable. It is NOT a substitute for eye protection, which should be worn at all times while riding.
