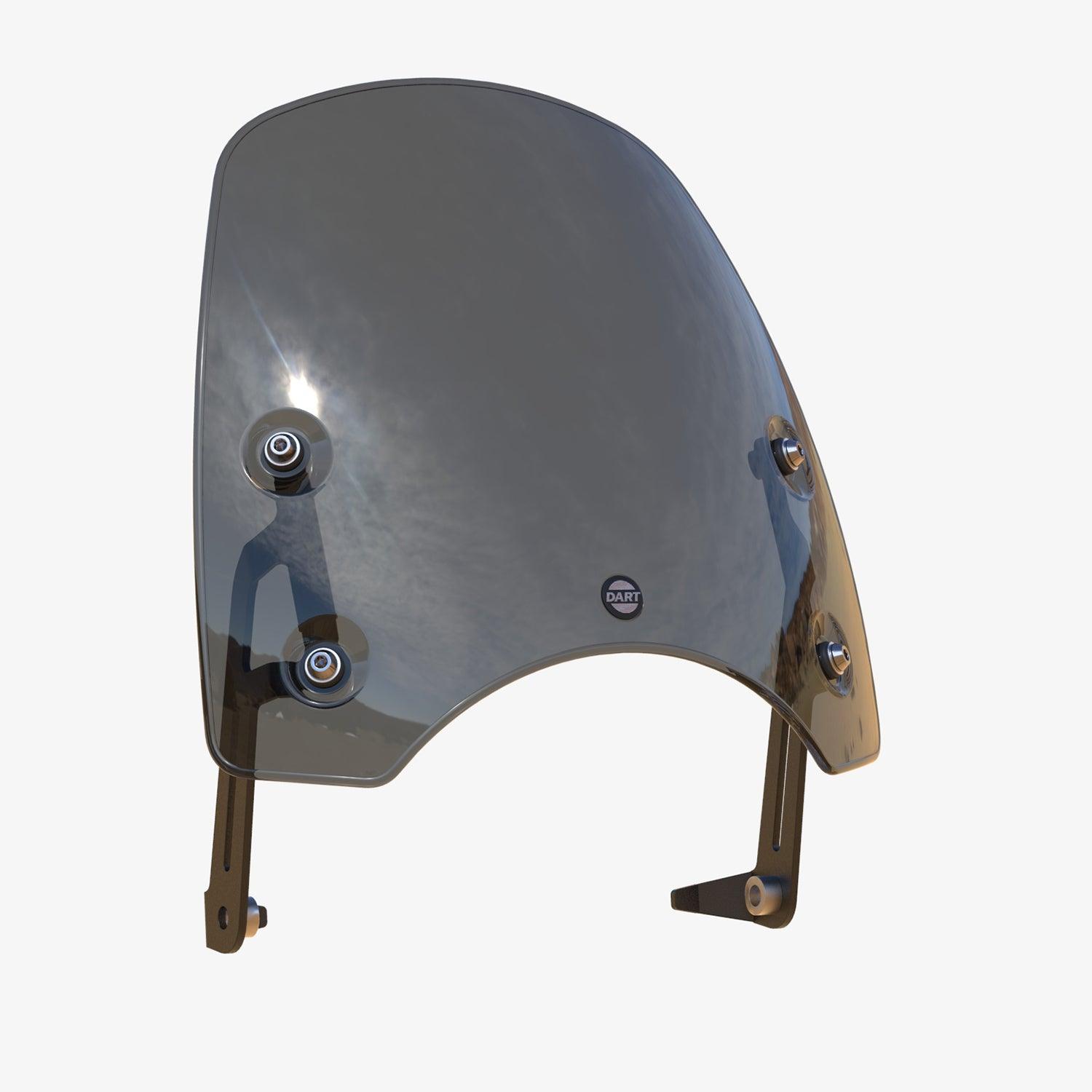

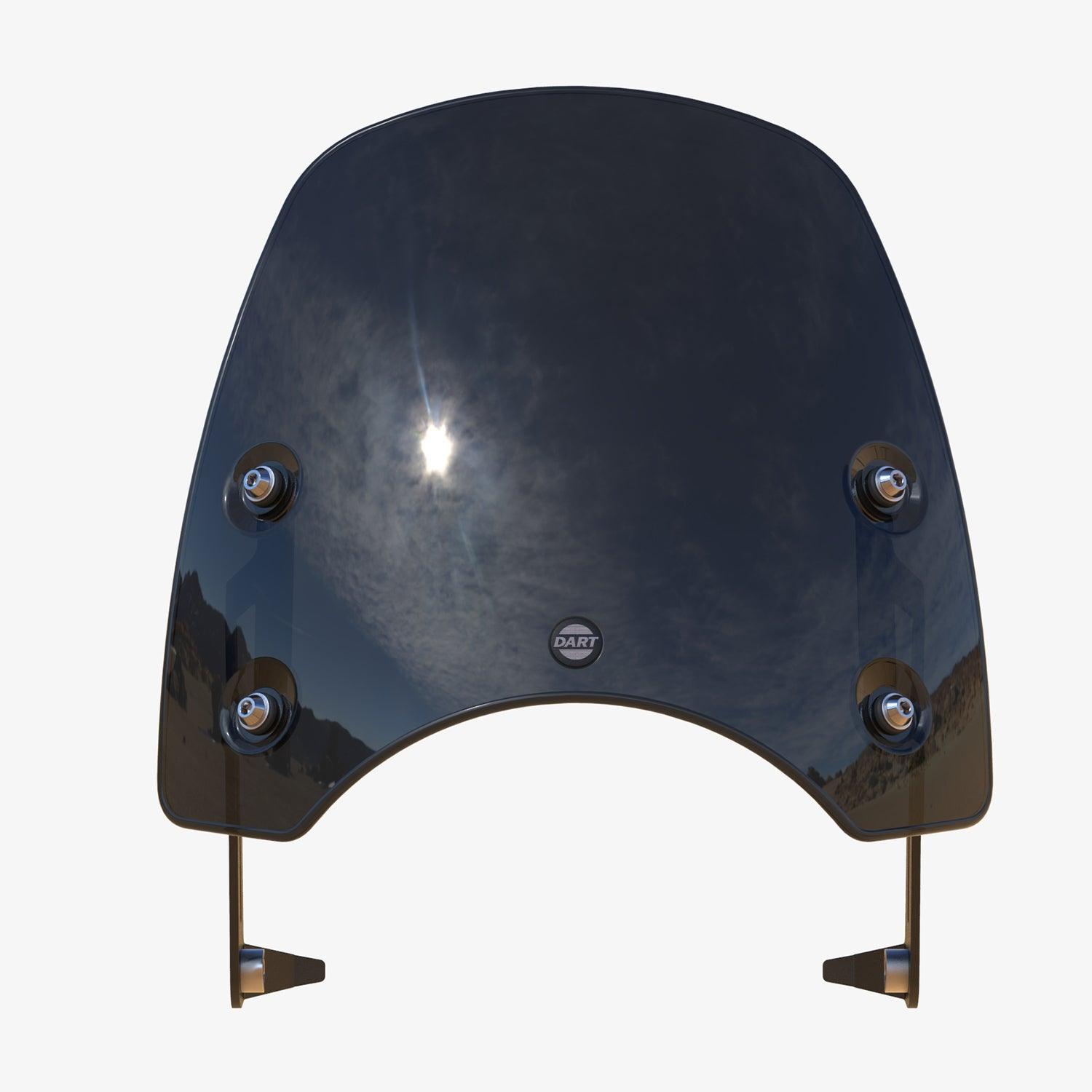

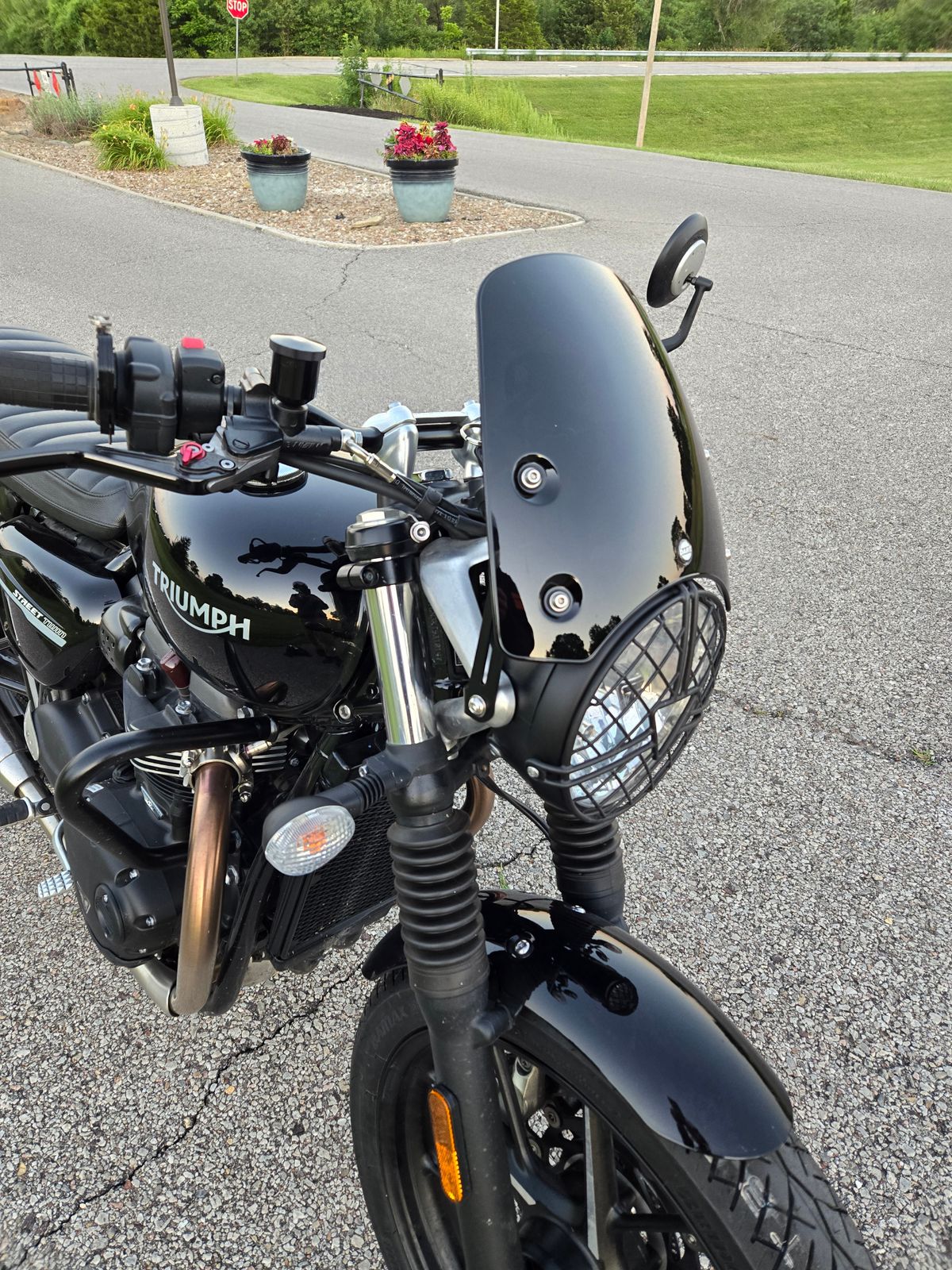

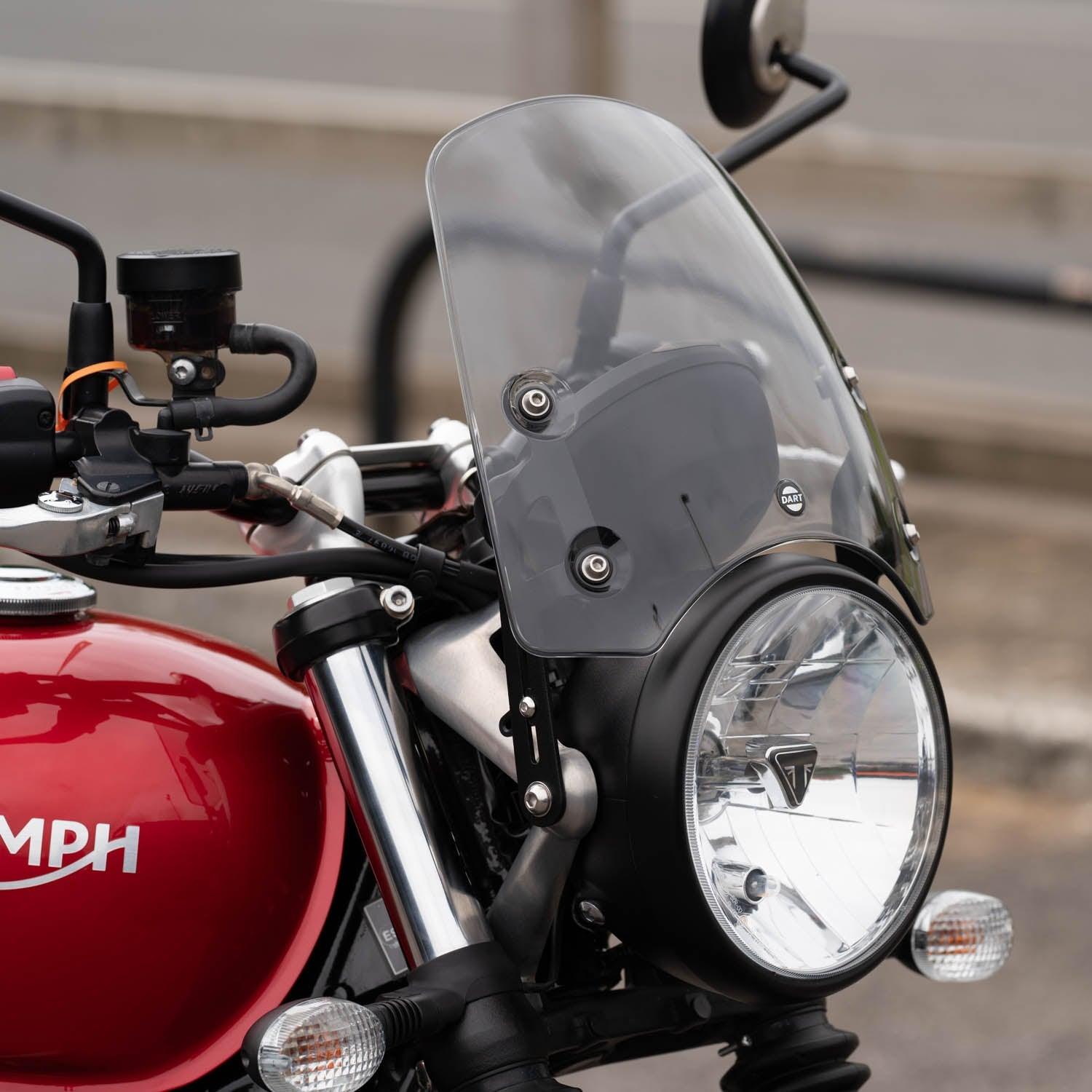

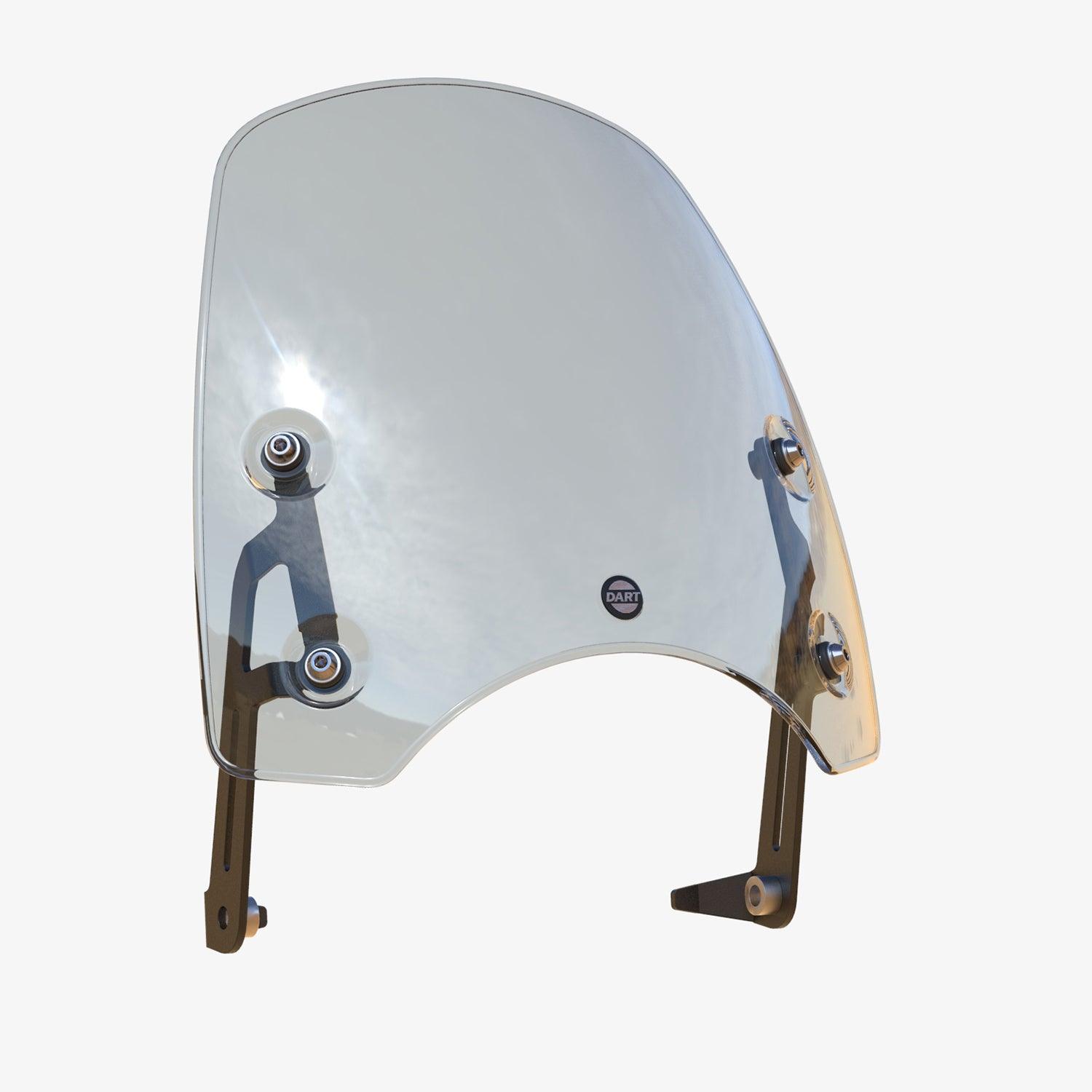

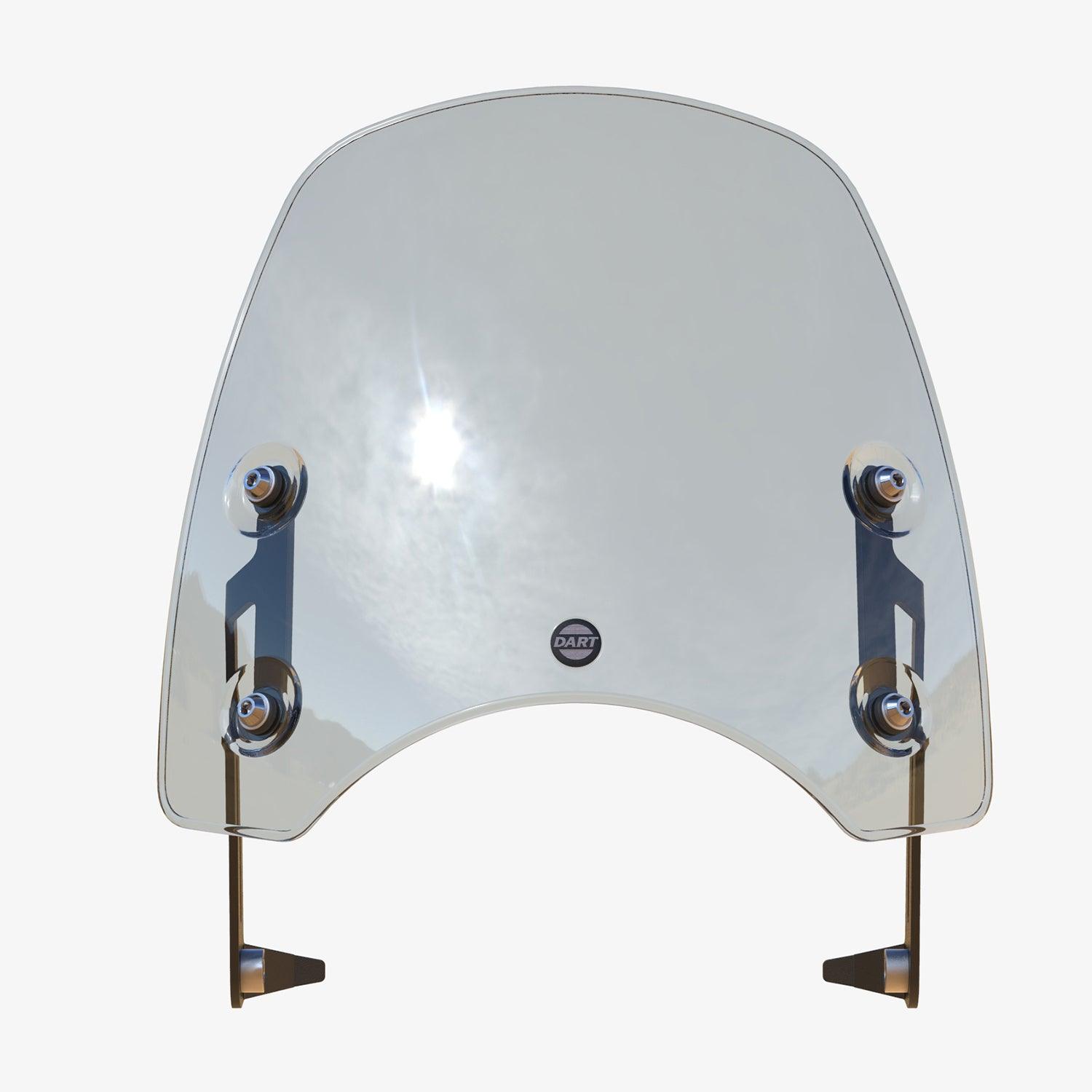

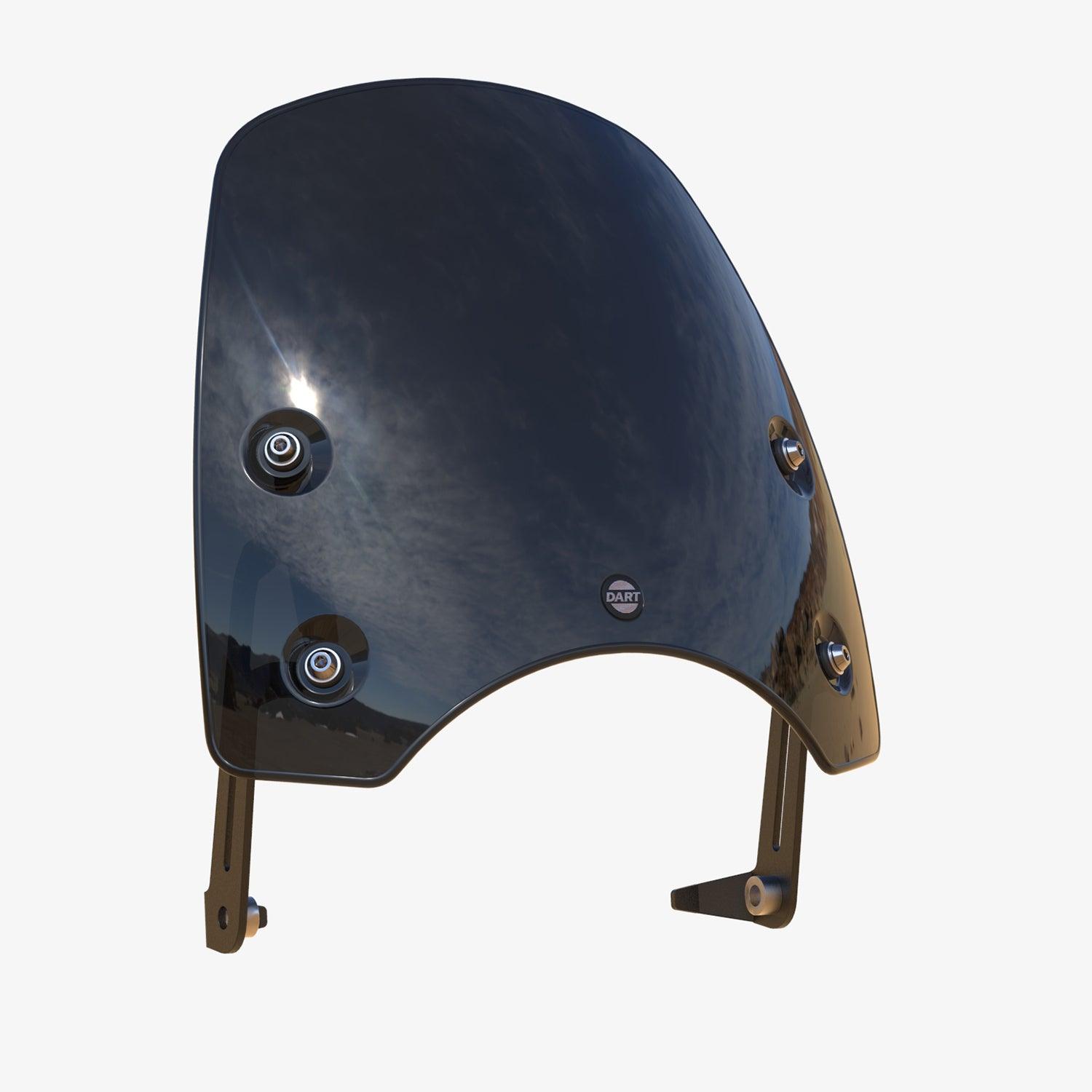

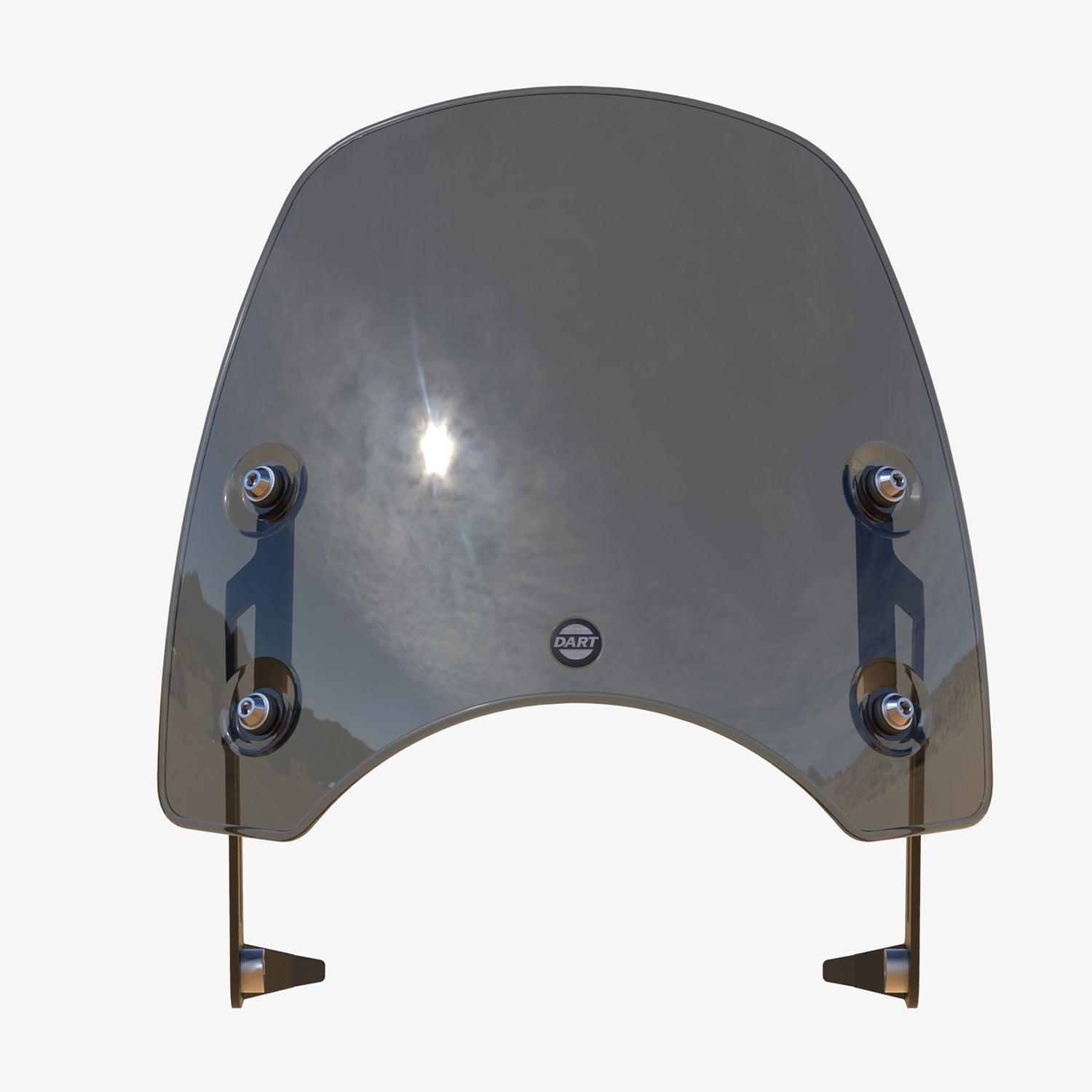

Dart Series 3 Flyscreen for Triumph Street Twin 2016-2021

The ideal fusion of design and utility for your Triumph Street Twin from 2016 to 2021. With this stylish and aerodynamically constructed addition, you can improve your riding experience while also giving your bike a host of advantages. The Series 3 Flyscreen, which was expertly crafted, not only enhances the timeless looks of your Street Twin but also lessens wind resistance, which lessens rider fatigue and turbulence during fast rides. It's the best option for people who want to mix traditional design with contemporary usefulness.

The Dart Series 3 Flyscreen, which is made from premium materials and has great durability, protects you from the weather while also giving your ride a touch of class. You will spend less time in the garage and more time enjoying the open road thanks to its simple installation. With the Dart Series 3 Flyscreen, you can improve your riding experience and leave a memorable impression. It perfectly combines design and function to produce a fashionable and useful item that will attract attention wherever you go.

Series 3 Flyscreen features:

• Style and Functionality: Elevate your Triumph Street Twin's appearance while improving wind management with the Dart Series 3 Flyscreen.

• Enhanced Wind Resistance: Enjoy reduced turbulence and fatigue during high-speed rides, ensuring a smoother and more stable journey.

• Durable Design: Crafted from premium materials, this flyscreen offers long-lasting quality and protection against the elements.

• Effortless Installation: Spend less time in the garage with a quick and easy setup, allowing you to hit the road sooner.

Specification:

• Injection-molded screen in 4mm thick high-impact automotive-grade polycarbonate

• Dimensions: 275mm (10.75") wide x 275mm (10.75") tall. Distance from top of the headlight cutout to top of the screen: 240mm (9.5")

• Dartec II anti-scratch hard-coating for extended life

• Mounting brackets in laser-cut aluminum, CNC-folded and powder-coated in black textured finish

• Custom EPDM grommets to absorb vibration

• Custom stainless steel screen mounting bolts with grommet ring and positive stop

• Microfiber cleaning cloth

Fits all water-cooled Street Twin / Speed Twin 900 models. Please select the correct year from the drop down list.

Package Includes:

• 1 X Polycarbonate Screen
• 4 X EPDM Rubber Grommets
• 1 X Left Hand Mounting Bracket
• 1 X Right Hand Mounting Bracket
• 2 X M8 X 30mm Stainless Screws
• 2 X Stainless Bushes
• 2 X M8 Stainless Washers
• 4 X Stainless Hex Head Machine Screws
• 4 X M6 Stainless Washers

Fitting Instructions:

1. Fit the grommets to the screen - this is best achieved from the back of the screen blade.
2. Using a Torx T40 socket, remove the bolt holding the headlamp to the right-hand headlamp bracket.
3. Fit an M8 washer onto one of the M8 x 30mm bolts, then the right-hand screen bracket, and finally one of the stainless bushes. Now fit this assembly onto the right-hand headlamp bracket and tighten the bolt. Ensure that the triangular part at the back of the screen mounting bracket is resting in the ‘V’ of the headlamp bracket before tightening.
4. Repeat operation for the left-hand side. If one side is fully tightened before the other is attempted then the headlamp should not need readjusting.
5. With both brackets fixed, hold the screen blade in position and loosely fit the bottom two hexagon head machine screws with their washers, ensuring that they engage in the captive nuts on the brackets. Do not tighten these yet.
6. Fit the top two machine screws. Once everything is in position, gradually tighten all the screws evenly until they are seated on the brackets.
7. Double-check that everything is sufficiently tight and if so, fitting is now complete!

MAINTENANCE: No special maintenance is required. Do not use solvents to clean - just warm soapy water. Many proprietary glass cleaners are suitable for polycarbonate - check the label before trying.

IMPORTANT NOTICE: Whilst the screen provides a good level of impact protection, it is not warranted unbreakable. It is NOT a substitute for eye protection, which should be worn at all times while riding.
