Dart Series 3 Flyscreen for Triumph Scrambler 865 - Black

SKU: SCR51D
Rated 5.0 out of 5
Based on 1 review
Sale price$129.95
Select Your Style: Dark Tint

Select Your Style


Need Help?

Speak to one of our experts (Monday - Friday 9 am to 4 pm PST)

Spend an additional $270 to qualify for FREE SHIPPING

Unveil a sleeker, smoother ride with the Dart Series 3 Flyscreen, Designed for riders who seek the perfect blend of style and function, this flyscreen promises superior wind deflection, making every journey smoother and more enjoyable, all while complementing the bike's raw and rugged aesthetics.

The attention to detail in the Dart Series 3's design ensures not just a seamless fit, but also durability to withstand the adventurous spirit of the Scrambler. Its striking black hue adds a touch of modern sophistication to the classic Scrambler silhouette. Whether you're navigating city streets or exploring winding trails, this flyscreen ensures your ride is as stylish as it is comfortable.

Series 3 Flyscreen features:

  • _ _

  • Precision Fit for Scrambler 865: The Dart Series 3 Flyscreen is meticulously tailored to perfectly align with the Triumph Scrambler 865's contours, ensuring both aesthetics and functionality are optimized.

  • Enhanced Aerodynamic Comfort: Thoughtfully designed to reduce wind turbulence, this flyscreen guarantees smoother rides, minimizing fatigue and enhancing overall riding pleasure.

  • Robust Black Elegance: Crafted from high-quality materials, the flyscreen's striking black finish not only ensures durability but also elevates the Scrambler's rugged charm.

  • Modern Upgrade to a Classic: Beyond its wind protection, the Dart Series 3 offers the Scrambler 865 a blend of modern sophistication, making every ride a statement of style and adventure.

Specification:

  • Injection-molded screen in 4mm thick high-impact automotive-grade polycarbonate
  • Dimensions: 275mm (10.75") wide x 275mm (10.75") tall. Distance from top of the headlight cutout to top of the screen: 240mm (9.5")
  • Dartec II anti-scratch hard-coating for extended life
  • Mounting brackets in laser-cut aluminum, CNC-folded and powder-coated in black textured finish
  • Custom EPDM grommets to absorb vibration
  • Custom stainless steel screen mounting bolts with grommet ring and positive stop
  • Microfiber cleaning cloth

Fits all Scrambler 865cc air-cooled models. This is also the correct model for the Bonneville T214 and Steve McQueen

NB Bike photos show the older Classic flyscreen: the Series 3 is slightly bigger but otherwise similar in appearance.

Package Includes:

  • 1 X Polycarbonate Screen
  • 4 X EPDM Rubber Grommets
  • 1 X Left Hand Mounting Bracket
  • 1 X Right Hand Mounting Bracket
  • 4 X Stainless Hex Head Machine Screws
  • 4 X Washers

Fitting Instructions:

  1. Fit the grommets to the screen - this is best achieved from the back of the screen blade.
  2. Using a 5mm Allen key, remove the bolt holding the headlamp to the right-hand headlamp bracket. 2012 model year and after uses 12mm bolts instead of Allen bolts. On these models please note you may have to take the front of the headlight off to refit the headlight bowl to the headlight bracket.
  3. Fit the right-hand screen mounting bracket on the headlamp bracket and refit the bolt; make sure the large washer is on the outside of the screen bracket. Ensure that the triangular step at the back of the screen mounting bracket is resting fully on the headlamp bracket before tightening.
  4. Repeat the operation for the left-hand side. If one side is fully tightened before the other is attempted then the headlamp should not need readjusting.
  5. With both brackets fixed, hold the screen blade in position and loosely fit the bottom two hexagon head machine screws with their washers, ensuring that they engage in the captive nuts on the brackets. Do not tighten these yet.
  6. Fit the top two machine screws. Note that the screen is held by a small amount of tension and the brackets will have to be forced slightly to accommodate this. Once everything is in position, gradually tighten all the screws evenly until they are seated on the brackets.
  7. Double-check that everything is sufficiently tight and if so, fitting is now complete!

MAINTENANCE: No special maintenance is required. Do not use solvents to clean - just warm soapy water. Many proprietary glass cleaners are suitable for polycarbonate - check the label before trying.

IMPORTANT NOTICE: Whilst the screen provides a good level of impact protection, it is not warranted unbreakable. It is NOT a substitute for eye protection, which should be worn at all times while riding.

Product Questions

Reviews

average rating 5.0 out of 5
Based on 1 review
  • 5 Stars
    1 Review
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
Customer photos and videos
1 Review
Reviewed by Cody M.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Fits Well

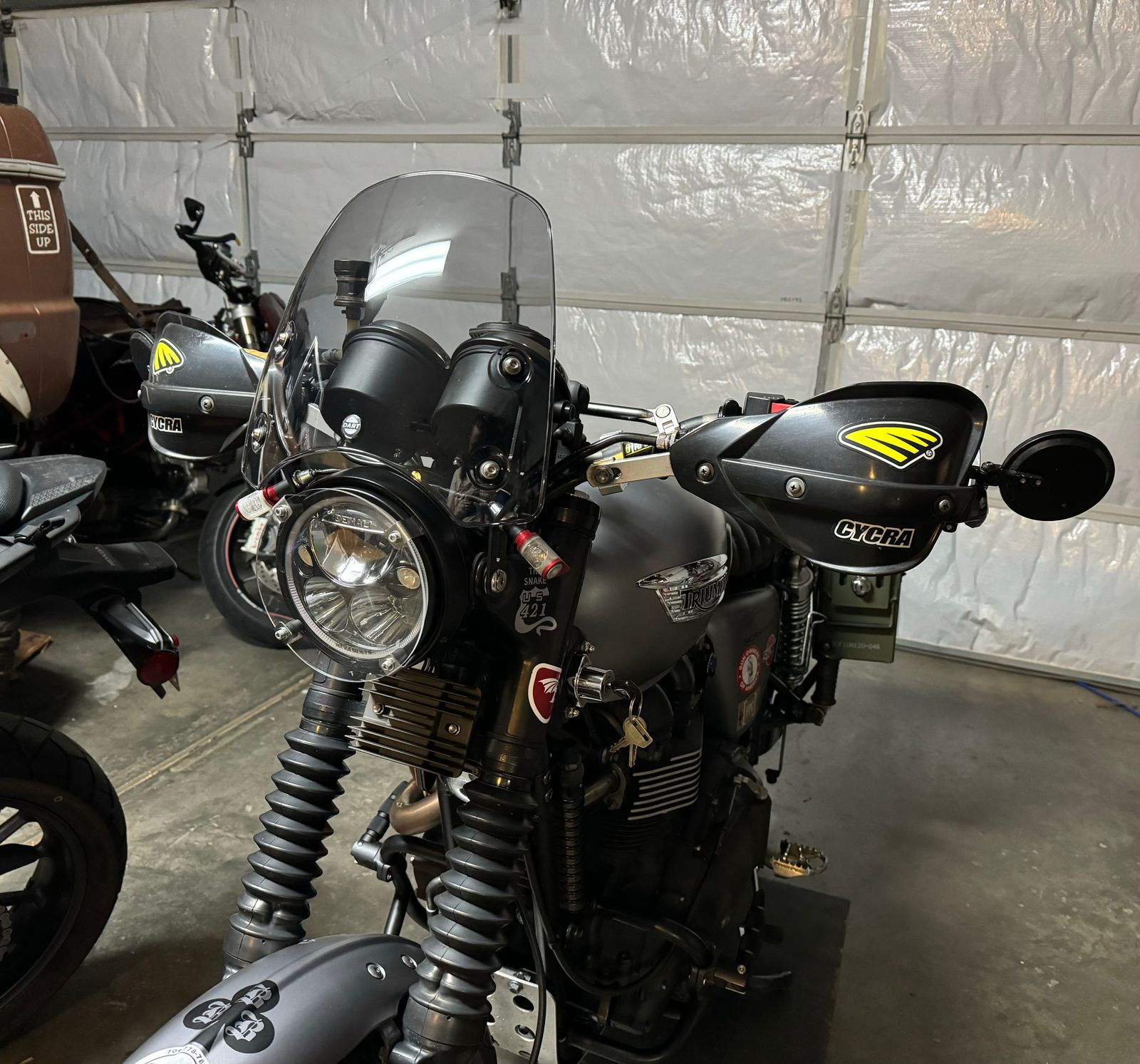

Needed something to protect my phone from being blasted by dirt. I did modify the mounts slightly to accommodate turn signals. Overall fits well even with a Denali headlight.

Might could use a way to keep it from changing your headlight position while riding highway.
