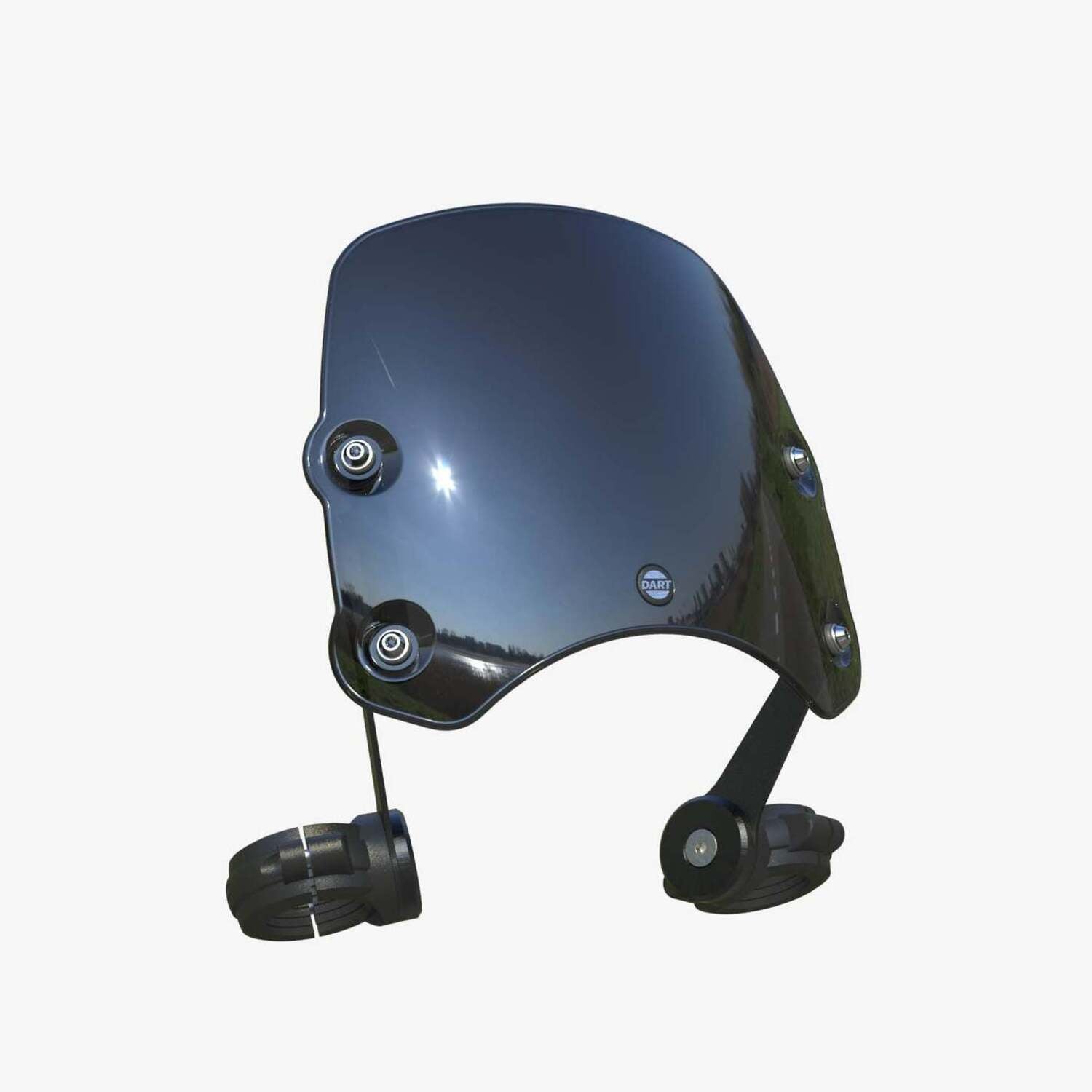

Dart Piranha S3 Flyscreen for Triumph Bobber with 47mm Forks | Black

High-Performance Dart Piranha S3 Flyscreen for Triumph Bobber with 41mm Forks

The Dart Piranha S3 Flyscreen is the perfect addition to your Triumph Bobber with 41mm forks. Known for turning heads, the Bobber deserves an accessory that enhances both style and function. This flyscreen not only tidies up the instrument area but also provides excellent wind protection, making longer rides more comfortable.

Made from 4mm high-impact polycarbonate, it offers durability and a sleek, minimalist look that complements the Bobber’s unique design. The Dartec II anti-scratch coating keeps the screen clear and lasting.

With laser-cut aluminum brackets, CNC-folded for precision, and stainless steel bolts, installation is quick and secure.

Upgrade your Triumph Bobber today with the Dart Piranha S3 Flyscreen and enjoy a more stylish, comfortable ride—perfect for both city cruising and open-road adventures!

Key Features and Benefits

• Durable Polycarbonate Screen: 4mm thick, high-impact material provides excellent wind protection and long-lasting durability.

• Anti-Scratch Coating: Dartec II coating ensures the screen stays clear and scratch-free over time.

• Precision Aluminum Mounting Brackets: Laser-cut, CNC-folded brackets offer a secure fit and stylish integration with your Bobber.

• Easy Installation: Custom stainless steel bolts make installation quick and hassle-free.

What's Included

• 1 X Polycarbonate Screen
• 4 X EPDM Rubber Grommets
• 1 X Left-hand Mounting Bracket
• 1 X Right-hand Mounting Bracket
• 4 X Stainless Hex Head Machine Screws
• 4 X Stainless M6 Washers
• 4 X Rubber Collets
• 2 X Plusmount Clamp Front
• 2 X Plusmount Clamp Back
• 2 X Anodised Aluminium Bezel
• 2 X M8 X 16mm Countersunk Hex Head Screws
• 4 X M6 X 16mm Pan Head Screws

Product Details

• Injection-molded screen in 4mm thick high-impact automotive-grade polycarbonate
• Piranha S3 Dimensions: 250mm (9.75”) wide x 230mm (9”) tall Distance from top of the headlight cutout to top of the screen: 240mm (9.5")
• Dartec II anti-scratch hard-coating for extended life
• Mounting brackets in laser-cut steel, CNC-folded and powder-coated in black textured finish
• PlusMount clamps in black ballistic glass-filled nylon
• Anodized aluminum bracket clamp discs
• Elastomer collets to adapt clamps to forks.
• Custom EPDM grommets to absorb vibration
• Custom stainless steel screen mounting bolts with grommet ring and positive stop
• All necessary grommets, screws, etc
• Microfiber cleaning cloth

Install Guide

1. Fit the grommets to the screen - this is best achieved from the back of the screen blade.
2. Fit the rubber collets into the four clamp components, ensuring they fit snugly.
3. Push the steel brackets onto the PlusMount clamp as per the diagram, add the anodized aluminum discs, and secure with the M8 x 16mm countersunk screws. Tighten these fully.
4. Place the clamps on the fork legs, a little below the top yoke, and secure them with the four M6 x 16mm screws. Don’t tighten these fully yet.
5. With both brackets fixed, hold the screen blade in position and fit the hexagon head machine screws with their washers, ensuring that they engage in the captive nuts on the brackets. Do not tighten these yet.
6. Now everything is in position, you can adjust the height of the screen above the headlight to your satisfaction, and make sure it’s good and central. Then gradually tighten the PlusMount clamp screws until there are the smallest of gaps between the two clamp halves. Now tighten the screen screws until they seat on the brackets.
7. Double-check that everything is sufficiently tight and if so, fitting is now complete!
